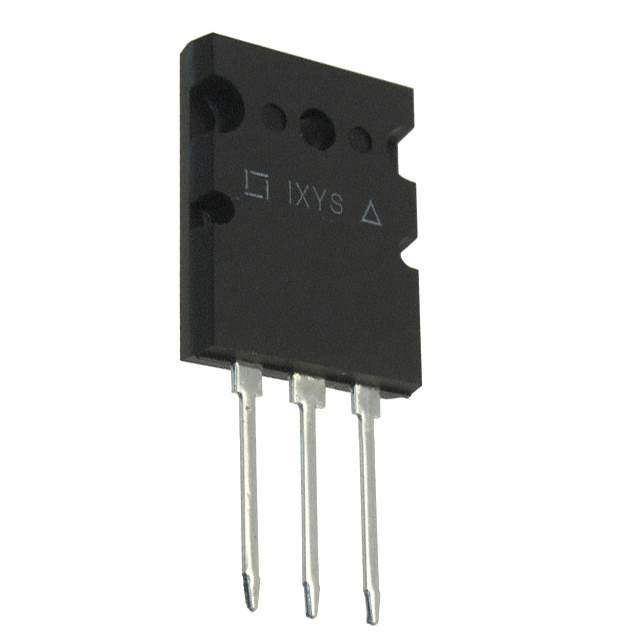

IXGK50N60B2D1 Real Image
Same model may have multiple batches, images only for reference.

IXGK50N60B2D1

Part No IXGK50N60B2D1
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 600V 75A 400W TO264  /  IGBT PT 600 V 75 A 400 W Through Hole TO-264 (IXGK)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr IXYS
Series HiPerFAST™
Package Tube
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 75 A
Current - Collector Pulsed (Icm) 200 A
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 40A
Power - Max 400 W
Switching Energy 550µJ (off)
Input Type Standard
Gate Charge 140 nC
Td (on/off) @ 25°C 18ns/190ns
Test Condition 480V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr) 35 ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-264-3, TO-264AA
Supplier Device Package TO-264 (IXGK)
Base Product Number IXGK50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 25
Win Source Part Number 1066189-IXGK50N60B2D1
Ultra Librarian 3D Model Ultra Librarian IXGK50N60B2D1 CAD Model

Description

The IXGK50N60B2D1 is a HiPerFAST™ IGBT transistor from IXYS.

  • Maximum Power Rating: 400 W
  • Reverse Recovery Time: 35 ns
  • IGBT Type: PT
  • Voltage Collector Emitter Breakdown: 600 V
  • Maximum Collector Current: 75 A
  • Maximum Collector Pulsed Current: 200 A
  • Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 40A
  • Switching Energy: 550μJ (off)
  • Gate Charge: 140 nC
  • Td (on/off) @ 25°C: 18ns/190ns
  • Mounting Type: Through-Hole
  • Package: TO-264-3, TO-264AA
  • Operating Temperature Range: Between -55°C and 150°C (TJ)
  • Alternative Parts: IXGK64N60B3D1, IXGK72N60A3H1, IXGK72N60B3H1, APT75GN60LDQ3G, APT100GN60LDQ4G, and APT68GA60LD40.
