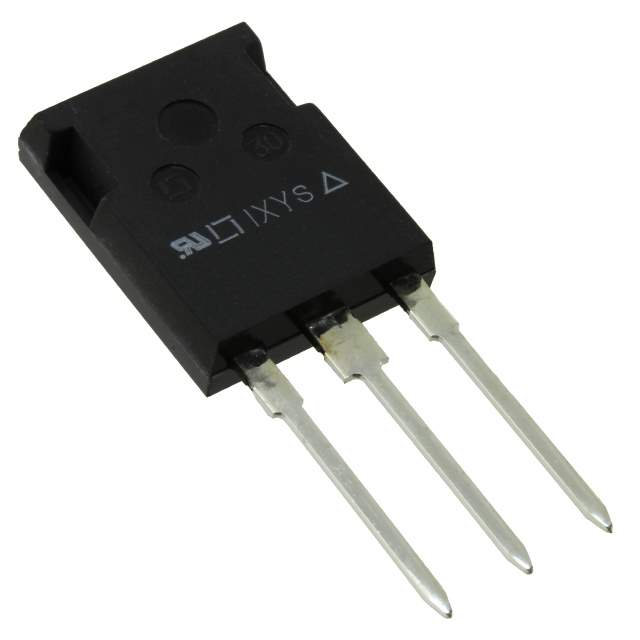

IXGR40N60B Real Image
Same model may have multiple batches, images only for reference.

IXGR40N60B

Part No IXGR40N60B
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 600V 70A 200W ISOPLUS247
Datasheet
IXGR40N60B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 70A
Pulsed Collector Current 150A
Collector-emitter saturation voltage(Max) 2.1V @ 15V, 40A
Maximum Power Dissipation 200W
Total Switching Energy(Ets) 2.7mJ (off)
Input Type Standard
Gate Charge 116nC
Turn-on and Turn-off delay time 25ns/180ns
Testing Conditions 480V, 40A, 4.7 Ohm, 15V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package ISOPLUS247
Win Source Part Number 1005453-IXGR40N60B
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IXGR40N60B CAD Model

Description

The IXGR40N60B is a through-hole mounting IGBT manufactured by IXYS.

  • IGBT Type: Single
  • Mounting Type: Through Hole
  • Input Type: Standard
  • Gate Charge: 116nC
  • Maximum Collector-Emitter Breakdown Voltage: 600V
  • Maximum Collector Current: 70A
  • Maximum Power Dissipation: 200W
  • Pulsed Collector Current: 150A
  • Collector-Emitter Saturation Voltage: 2.1V @ 15V and 40A
  • Total Switching Energy: 2.7mJ
  • Turn-On Delay Time: 25ns
  • Turn-Off Delay Time: 180ns
  • Operating Temperature: -40°C to 150°C
  • Packaging: Tube/Rail
  • Popularity: Medium
