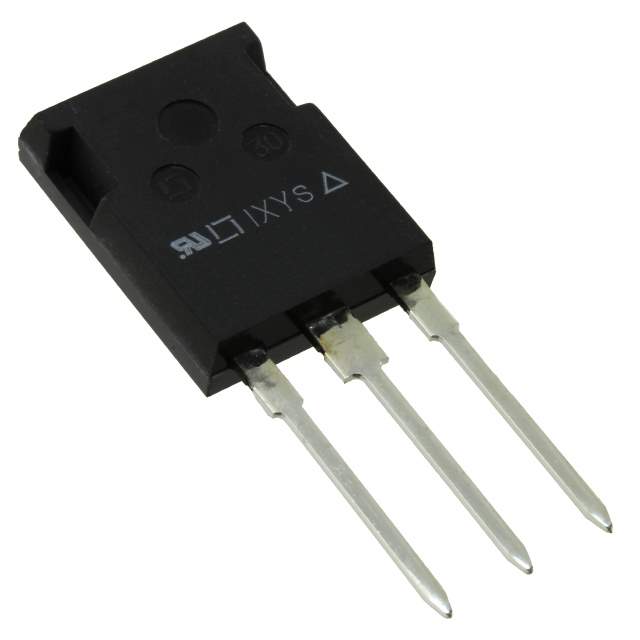

IXGR60N60C3D1 Real Image
Same model may have multiple batches, images only for reference.

IXGR60N60C3D1

Part No IXGR60N60C3D1
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 600V 75A 170W ISOPLUS247  /  IGBT PT 600 V 75 A 170 W Through Hole ISOPLUS247™
Datasheet
IXGR60N60C3D1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr IXYS
Series GenX3™
Package Tube
Product Status Obsolete
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 75 A
Current - Collector Pulsed (Icm) 260 A
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 40A
Power - Max 170 W
Switching Energy 800µJ (on), 450µJ (off)
Input Type Standard
Gate Charge 115 nC
Td (on/off) @ 25°C 21ns/70ns
Test Condition 480V, 40A, 3Ohm, 15V
Reverse Recovery Time (trr) 25 ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package ISOPLUS247™
Base Product Number IXGR60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 30
Win Source Part Number 1201890-IXGR60N60C3D1
Ultra Librarian 3D Model Ultra Librarian IXGR60N60C3D1 CAD Model

Description

The 1201890-IXGR60N60C3D1 is a GenX3™ IGBT transistor with a maximum power of 170 W.

  • Power: 170 W (Max)
  • Reverse Recovery Time (trr): 25 ns
  • IGBT Type: PT
  • Voltage - Collector Emitter Breakdown (Max): 600 V
  • Current - Collector (Ic) (Max): 75 A
  • Current - Collector Pulsed (Icm): 260 A
  • Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 40A
  • Switching Energy: 800μJ (on), 450μJ (off)
  • Gate Charge: 115 nC
  • Td (on/off) @ 25°C: 21ns/70ns
  • Test Condition: 480V, 40A, 3Ohm, 15V
  • Mounting Type: through hole
  • Package/Case: TO-247-3
  • Temperature Range: -55°C ~ 150°C (TJ)
  • Manufacturer: IXYS
