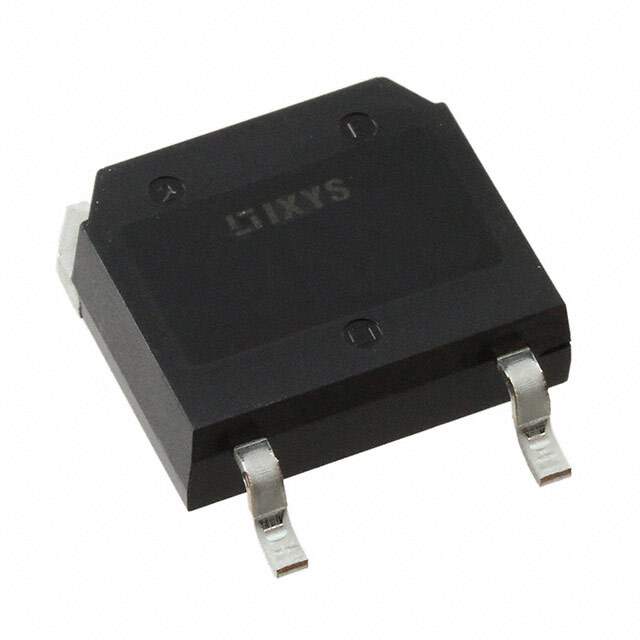

Same model may have multiple batches, images only for reference.

IXTT240N15X4HV

Name: IXTT240N15X4HV
Brand: IXYS
SKU: 1346783
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IXTT240N15X4HV
Manufacturer	IXYS
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 150V 240A TO268HV / N-Channel 150 V 240A (Tc) 940W (Tc) Surface Mount TO-268HV (IXTT)
Datasheet	IXTT240N15X4HV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	IXYS
Series	Ultra X4
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.4mOhm @ 120A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	195 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8900 pF @ 25 V
Power Dissipation (Max)	940W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268HV (IXTT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab) , TO-268AA
Base Product Number	IXTT240
Standard Package	30
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1346783-IXTT240N15X4HV
Ultra Librarian 3D Model	Ultra Librarian IXTT240N15X4HV CAD Model

Alternative Products

Description

The IXTT240N15X4HV is a N-channel MOSFET transistor from the Ultra X4 series of IXYS.

Drain to Source Voltage: 150 V
Power Dissipation: 940W (Tc)
Package/Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Mounting Type: Surface Mount
Maximum Vgs: ±20V
Temperature Range: -55°C to 175°C (TJ)
Rds On (Max): 4.4mOhm @ 120A, 10V
Current - Continuous Drain (Id) @ 25°C: 240A (Tc)
