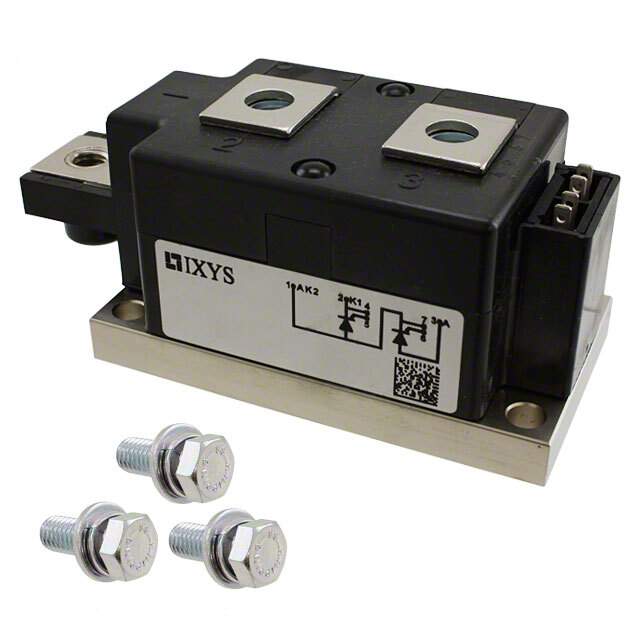

MCD225-12IO1 Real Image
Same model may have multiple batches, images only for reference.

MCD225-12IO1

Part No MCD225-12IO1
Manufacturer IXYS
Catalog SCRs - Single - Modules
Description MOD THYRISTOR/DIODE 1200V Y1-CU  /  SCR Module 1.2 kV 400 A Series Connection - SCR/Diode Chassis Mount Y1-CU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr IXYS
Package Bulk
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1.2 kV
Current - On State (It (AV)) (Max) 221 A
Current - On State (It (RMS)) (Max) 400 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 8000A, 8500A
Current - Hold (Ih) (Max) 150 mA
Temperature Range - Operating -40°C ~ 140°C (TJ)
Mounting Type Chassis Mount
Package / Case Y1-CU
Base Product Number MCD225
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Standard Package 3
Win Source Part Number 1009096-MCD225-12IO1
Ultra Librarian 3D Model Ultra Librarian MCD225-12IO1 CAD Model

Description

The MCD225-12IO1 is a thyristor module electronic component manufactured by IXYS.

  • Package: bulk
  • Standard Package: 3
  • Voltage Off State: 1.2 kV
  • Voltage Gate Trigger: 2 V
  • Current On State: 221 A
  • Current On State (RMS): 400 A
  • Connection: 1 SCR and 1 diode
  • Mounting Type: chassis mount
  • Temperature Range: -40°C ~ 140°C
