Same model may have multiple batches, images only for reference.

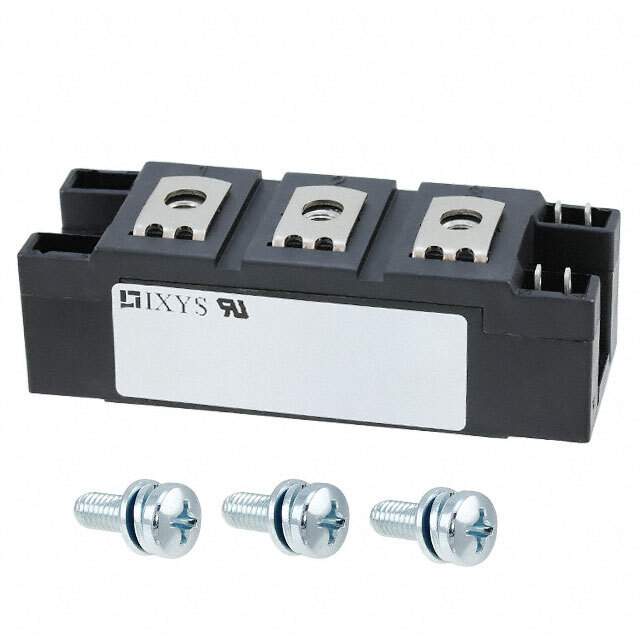

MDD172-16N1 Real Image
Same model may have multiple batches, images only for reference.

MDD172-16N1

Part No MDD172-16N1
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description High Power Diode Modules | DIODE MODULE 1.6KV 190A Y4-M6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1600V
Current - Average Rectified (Io) (per Diode) 190A
Voltage - Forward (Vf) (Maximum) at If 1.15V at 300A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage at Vr 20mA at 1600V
Mounting Style Chassis Mount
Manufacturer Package Y4-M6
Supplier Device Package Y4-M6
Family Part Number MDD172
Manufacturer Pack Quantity 6
MSL Level 1 (Unlimited)
Win Source Part Number 1221489-MDD172-16N1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MDD172-16N1 CAD Model

Description

The IXYS 1221489-MDD172-16N1 is a standard recovery diode that is used for applications with a speed of >500ns, > 200mA (Io). It is packaged in bulk and is chassis mountable. Its voltage - DC reverse (Vr) (maximum) is 1600V and its current - average rectified (Io) (per diode) is 190A. The supply and demand status of this component is limited. It comes in a Y4-M6 manufacturer package and has a voltage - forward (Vf) (maximum) at If of 1.15V at 300A.
