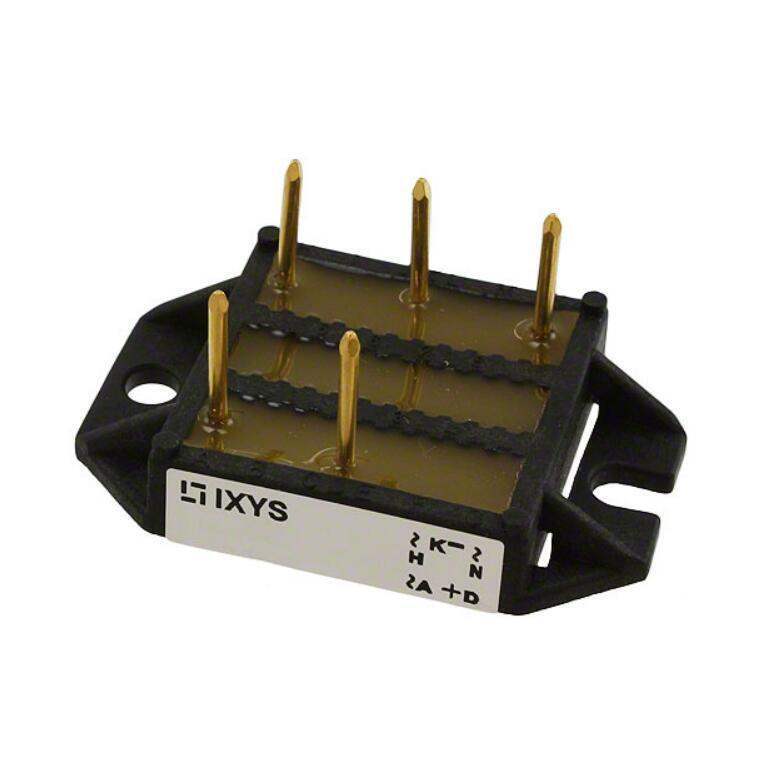

VUO86-12NO7IXYS
Same model may have multiple batches, images only for reference.

VUO86-12NO7

Part No VUO86-12NO7
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description BRIDGE RECT 3P 1.2KV 86A ECOPAC1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201057-VUO86-12NO7
Win Source Part Number Cross
Manufacturer IXYS
Category Discrete Semiconductor Products Diodes Bridge Rectifiers
Package Box
Product Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.2 kV
Current - Average Rectified (Io) 86 A
Voltage - Forward (Vf) (Max) @ If 1.14 V @ 30 A
Ultra Librarian 3D Model Ultra Librarian VUO86-12NO7 CAD Model

Description

The IXYS three-phase bridge rectifier is a standard diode package designed for reliable and efficient rectification of AC power.

  • Manufacturer: IXYS
  • Type: Three-Phase Bridge Rectifier
  • Current Rating: 86A
  • Voltage Forward Drop: 1.14V @ 30A
  • Peak Reverse Voltage: 1.2kV
  • Package: Box
  • Application: Power Supplies, Motor Drives, Inverters
