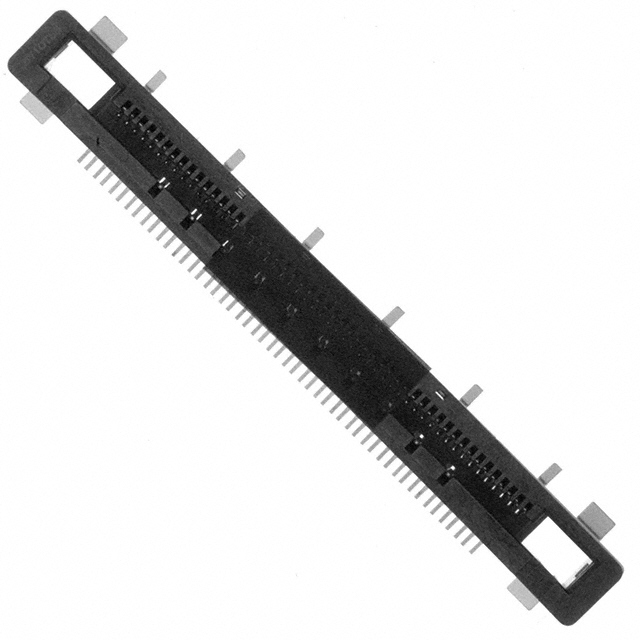

Same model may have multiple batches, images only for reference.
FI-RE51S-VF-R1300 JAE Electronics
Same model may have multiple batches, images only for reference.

FI-RE51S-VF-R1300

Part No FI-RE51S-VF-R1300
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 0.5MM 51POS SMD / Conn High Speed Fine Pitch Connector RCP 51 POS 0.5mm Solder ST SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Series FI-R
Packaging Reel package
Connector Type Receptacle
Contact Type Female Blade Socket
Style Board to Cable/Wire
Number of Positions 51
Number of Positions Loaded All
Pitch - Mating 0.020" (0.50mm)
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Insulation Height 0.183" (4.65mm)
Operating Temperature Range -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 10.1mm, 16.1mm
Features Shielded, Solder Retention
Current Rating 0.8A per Contact
Applications General Purpose, Medical
Insulation Material Plastic
Contact Material Copper Alloy
Win Source Part Number 774582-FI-RE51S-VF-R1300
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,300
Family Name FI
Introduction Date December 25, 2008
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FI-RE51S-VF-R1300 CAD Model

Description

The JAE Electronics FI-R series shielded receptacle connector is an ideal solution for general-purpose and medical applications.

  • Positions: 51
  • Contact Type: female blade socket
  • Termination: solder
  • Insulation Material: plastic
  • Style: board to cable/wire
  • Pitch-Mating: 0.020" (0.50mm)
  • Contact Finish-Mating: gold
  • Contact Finish-Post: tin
  • Current Rating: 0.8A @ contact
  • Mated Stacking Heights: 10.1mm, 16.1mm
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature Range: -40°C ~ 80°C
  • Package Type: reel
  • Fastening Type: latch holder
  • ECCN: EAR99
  • Estimated EOL Date: 2027
