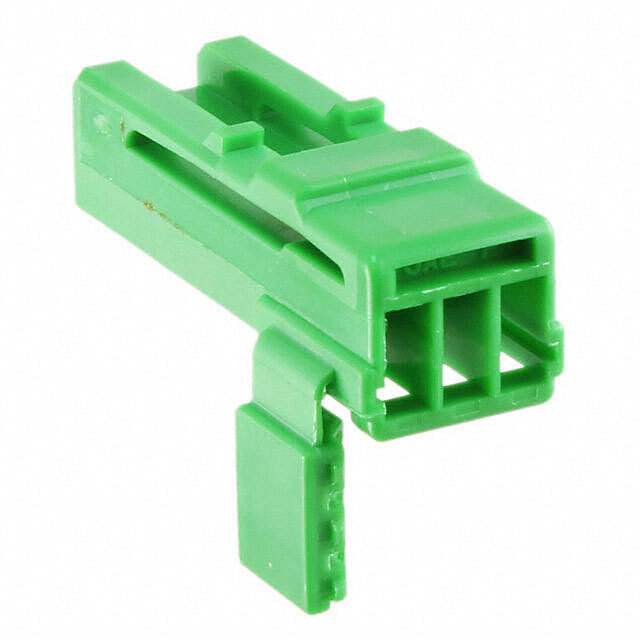

IL-AG9-3S-S3C1 JAE Electronics
Same model may have multiple batches, images only for reference.

IL-AG9-3S-S3C1

Part No IL-AG9-3S-S3C1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT HSG 3POS 2.50MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204082-IL-AG9-3S-S3C1
Manufacturer JAE Electronics
Category Connectors, Interconnects -Rectangular Connectors -Rectangular Connector Housings
Series IL-AG9
Package Bulk
Product Status Active
Connector Type Receptacle
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Insulation Material Polybutylene Terephthalate (PBT)
Base Product Number IL-AG9-3
Ultra Librarian 3D Model Ultra Librarian IL-AG9-3S-S3C1 CAD Model

Description

3 Rectangular Connectors - Housings Receptacle Green 0.098" (2.50mm)
