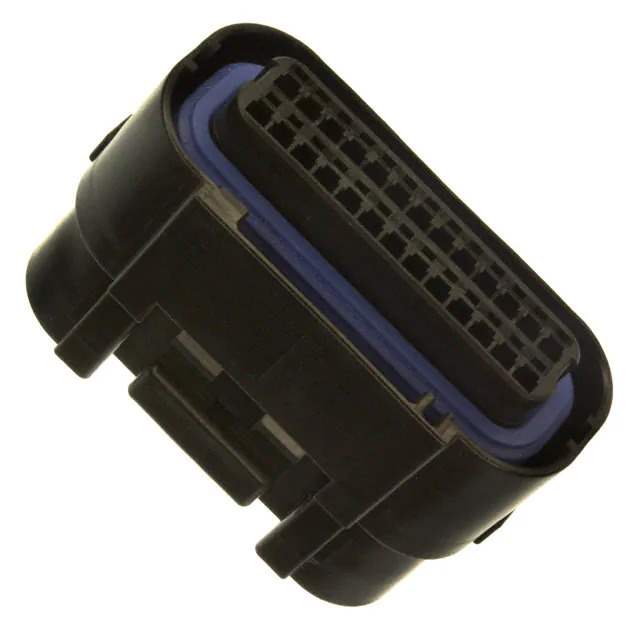

MX23A26SF1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JAE Electronics
Series MX23A
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 26
Pitch 0.098" (2.50mm)
Number of Rows 2
Row Spacing 0.173" (4.40mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Features Waterproof
Temperature Range - Operating -40°C ~ 125°C
Note Contacts Not Included
Base Product Number MX23A
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 928538-MX23A26SF1
Ultra Librarian 3D Model Ultra Librarian MX23A26SF1 CAD Model

Description

The 928538-MX23A26SF1 is a rectangular connector housing designed for various electronic applications.

  • Series: MX23A
  • Positions: 26
  • Pitch: 0.098" (2.50mm)
  • Color: Black
  • Feature: Waterproof
  • Connector Type: Receptacle
  • Contact Gender: Female Socket
  • Rows: 2
  • Row Spacing: 0.173" (4.40mm)
  • Termination: Crimp
  • Package: Bulk
  • Standard Package: 250 pcs
  • Manufacturer: JAE Electronics
  • Market Status: Active
