MX84B024NF1 JAE Electronics

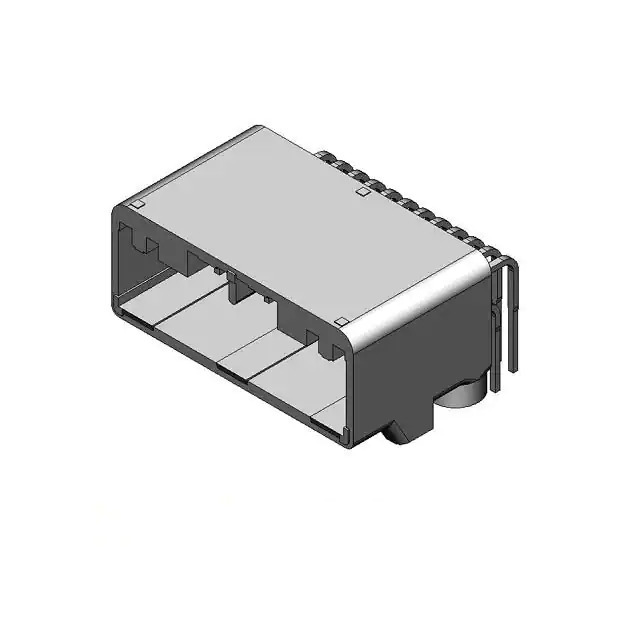

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX84B
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length -
Insulation Height 0.626" (15.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive
Base Product Number MX84B
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1379276-MX84B024NF1
Ultra Librarian 3D Model Ultra Librarian MX84B024NF1 CAD Model

Description

The 1379276-MX84B024NF1 is a male pin header connector from JAE Electronics.

  • Series: MX84B
  • Status: Active
  • Application: Automotive
  • Operating Temperature Range: -40°C to 85°C
  • Number of Positions: 24
  • Number of Rows: 2
  • Pitch: 0.087" (2.20mm)
  • Row Spacing: 0.118" (3.00mm)
  • Contact Termination: Solder
  • Features: Locking Ramp, Shrouded with 4 Walls
  • Current Rating: 3A
  • Contact Material: Brass with Tin Finish
  • Insulation Material: Syndiotactic Polystyrene (SPS) with Glass Filling
