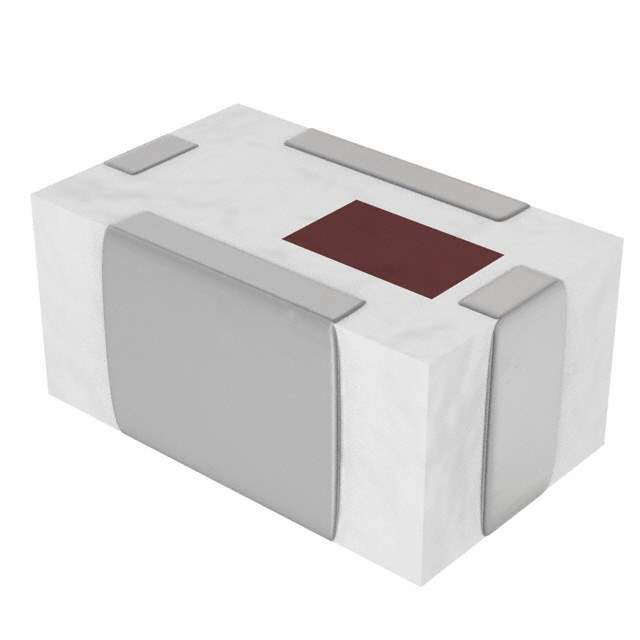

1175LP15A0550E Real Image
Same model may have multiple batches, images only for reference.

1175LP15A0550E

Part No 1175LP15A0550E
Manufacturer Johanson Technology Inc.
Catalog RF Filters
Description RF FILTER LOWPASS 1.175GHZ 0805
Datasheet
1175LP15A0550E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Johanson Technology Inc.
Packaging Reel - TR
Status Active
Frequency 1.175GHz Center
Bandwidth 550MHz
Filter Type Low Pass
Ripple 1.8dB
Insertion Loss 2.5dB
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.041" (1.05mm)
Win Source Part Number 1000221-1175LP15A0550E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian 1175LP15A0550E CAD Model

Description

The Johanson Technology Inc. 1000221-1175LP15A0550E is a low pass filter with a frequency range of 1.175GHz center and a bandwidth of 550MHz.

  • Frequency: 1.175GHz center
  • Bandwidth: 550MHz
  • Insertion Loss: 2.5dB
  • Ripple: 1.8dB
  • Mounting: surface mount (SMD)
  • Application: filter
