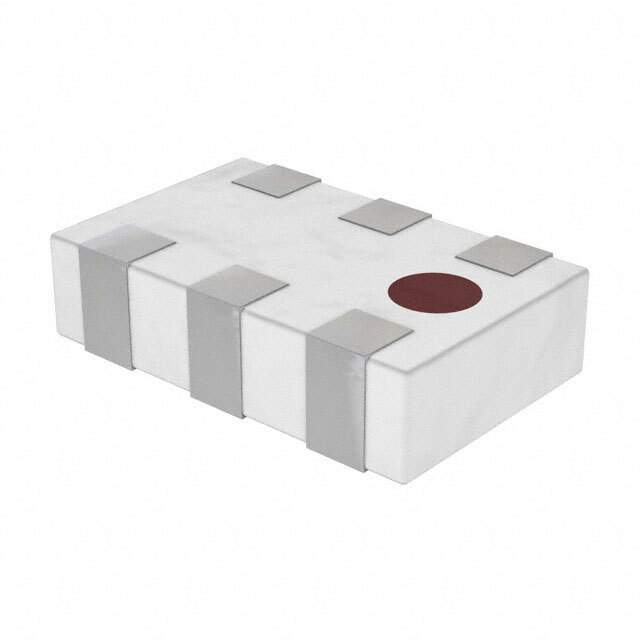

2450DP15L5400E Real Image
Same model may have multiple batches, images only for reference.

2450DP15L5400E

Part No 2450DP15L5400E
Manufacturer Johanson Technology Inc.
Catalog RF Multiplexers
Description RF DIPLEXER 2.45/5.425GHZ 0805
Datasheet
2450DP15L5400E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Johanson Technology Inc.
Packaging Reel
Type Diplexer
Frequency Bands (Low / High) 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB) 20.00dB / 27.00dB
High Band Attenuation (min / max dB) 20.00dB / 23.00dB
Return Loss (Low Band / High Band) 10.0dB / 10.0dB
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric), 6 PC Pad
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804568-2450DP15L5400E
Ultra Librarian 3D Model Ultra Librarian 2450DP15L5400E CAD Model

Description

The Johanson Technology Inc. 804568-2450DP15L5400E is a surface mount diplexer that has two frequency bands, which are 2.4GHz ~ 2.5GHz and 4.9GHz ~ 5.95GHz.

  • Low Band Attenuation: 20.00dB / 27.00dB
  • High Band Attenuation: 20.00dB / 23.00dB
  • Return Loss (Low Band): 10.0dB
  • Return Loss (High Band): 10.0dB
  • Packaging: Reel
  • Quantity: 4,000 pcs
  • Popularity: Medium
