Same model may have multiple batches, images only for reference.

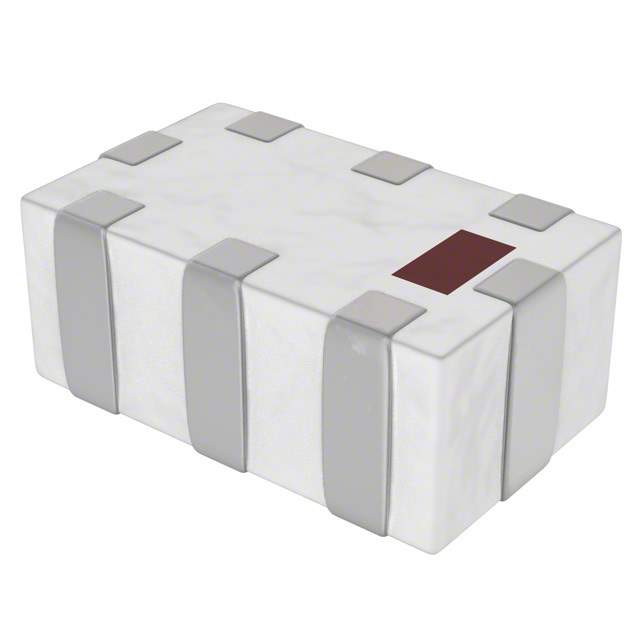

5300CF15A0950E Real Image
Same model may have multiple batches, images only for reference.

5300CF15A0950E

Part No 5300CF15A0950E
Manufacturer Johanson Technology Inc.
Catalog RF Directional Coupler
Description RF DIR COUPLER 4.9-5.85GHZ 0805
Datasheet
5300CF15A0950E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 26 Weeks
Features RF Directional Coupler
Manufacturer Johanson Technology Inc.
Package Reel - TR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.70.0000
Other Part Number 712-1580-2, 5300CF15A0950E-ND, 712-1580-1, Q7486316B, 712-1580-6
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 856470-5300CF15A0950E
Ultra Librarian 3D Model Ultra Librarian 5300CF15A0950E CAD Model

Description

The Johanson Technology Inc. 856470-5300CF15A0950E is an RF directional coupler designed for use in RF/IF and RFID applications.

  • Application: RF/IF and RFID
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 26 Weeks
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8517.70.0000
