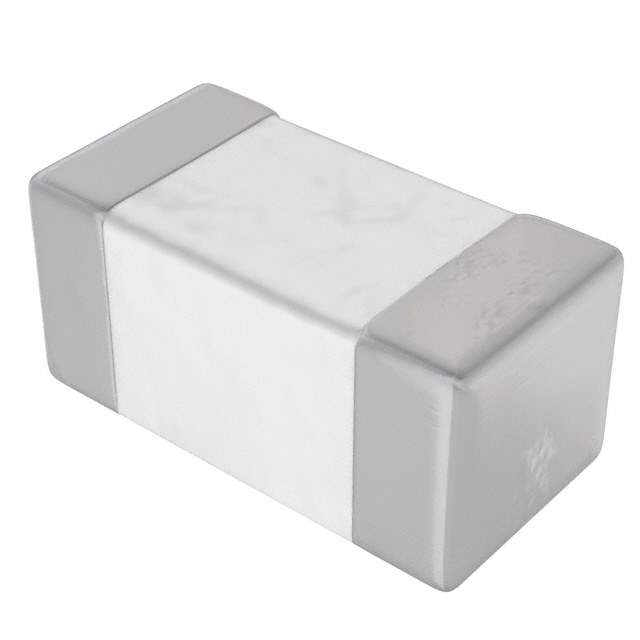

LRC0603CJR15GV001T Real Image
Same model may have multiple batches, images only for reference.

LRC0603CJR15GV001T

Part No LRC0603CJR15GV001T
Manufacturer Johanson Technology Inc.
Catalog Fixed Inductors
Description FIXED IND 150NH 300MA 2.4OHM SMD / 150 nH Unshielded Multilayer Inductor 300 mA 2.4Ohm Max 0603 (1608 Metric)
Datasheet
LRC0603CJR15GV001T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Johanson Technology Inc.
Package Tape & Reel
Type Multilayer
Material - Core Ceramic
Inductance 150 nH
Tolerance ±5%
Current Rating (Amps) 300 mA
Shielding Unshielded
DC Resistance (DCR) 2.4Ohm Max
Q @ Freq 8 @ 50MHz
Frequency - Self Resonant 650MHz
Temperature Range - Operating -55°C ~ 100°C
Inductance Frequency - Test 50 MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1349248-LRC0603CJR15GV001T
Ultra Librarian 3D Model Ultra Librarian LRC0603CJR15GV001T CAD Model

Description

The LRC0603CJR15GV001T is a fixed inductor that is made of ceramic material.

  • Material: Ceramic
  • Type: Multilayer
  • Shielding: Unshielded
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Inductance: 150 nH
  • Package: 4,000
  • Tolerance: ±5%
  • Q @ Freq: 8 @ 50MHz
  • Frequency Self-Resonant: 650MHz
  • Mounting Type: Surface Mount
  • Package/Case: 0603 (1608 Metric)
  • DC Resistance (DCR): 2.4Ohm Max
  • Current Rating (Amps): 300 mA
  • Temperature Range: -55°C ~ 100°C
  • REACH: Unaffected
