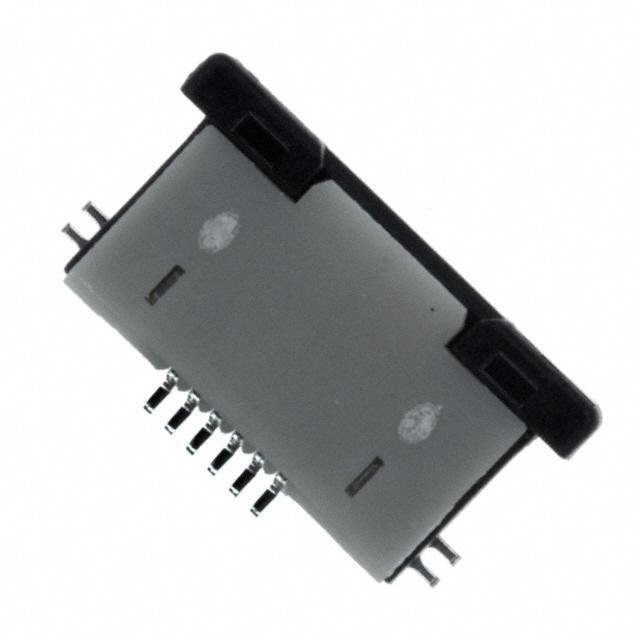

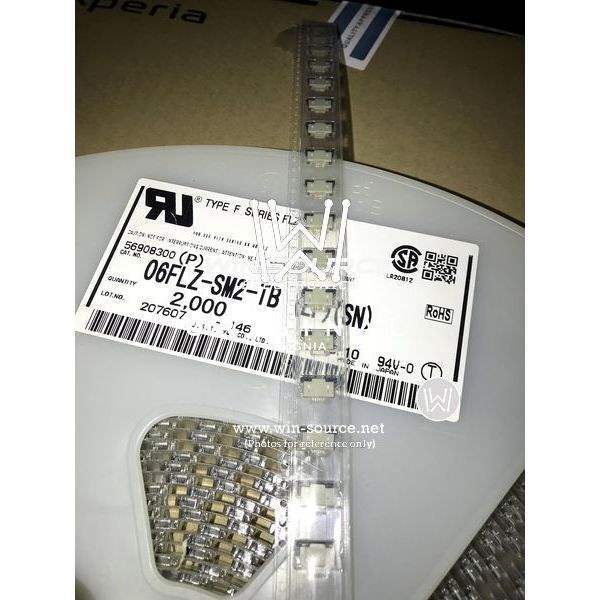

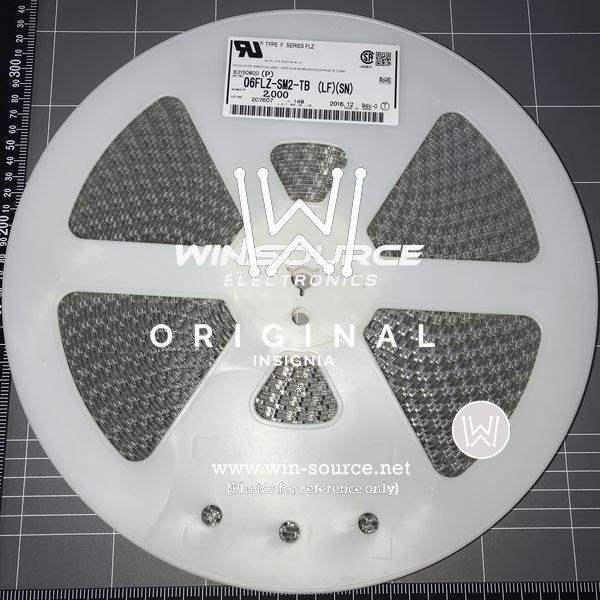

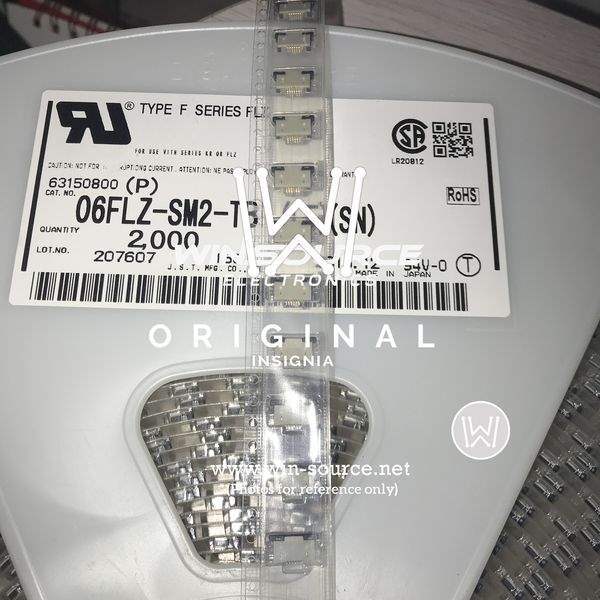

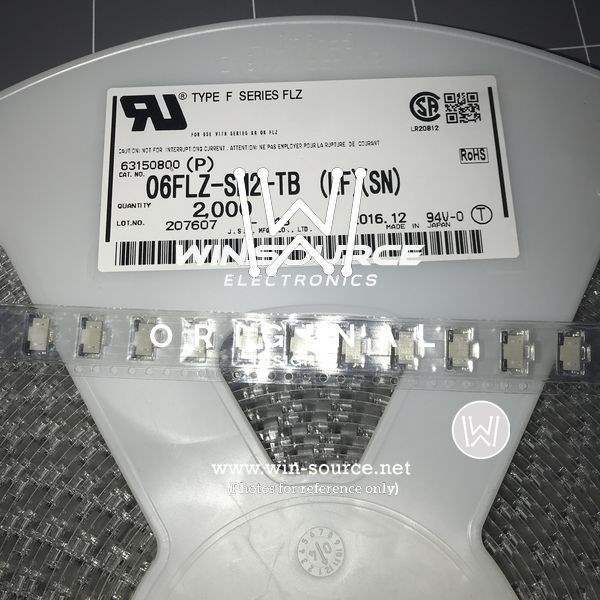

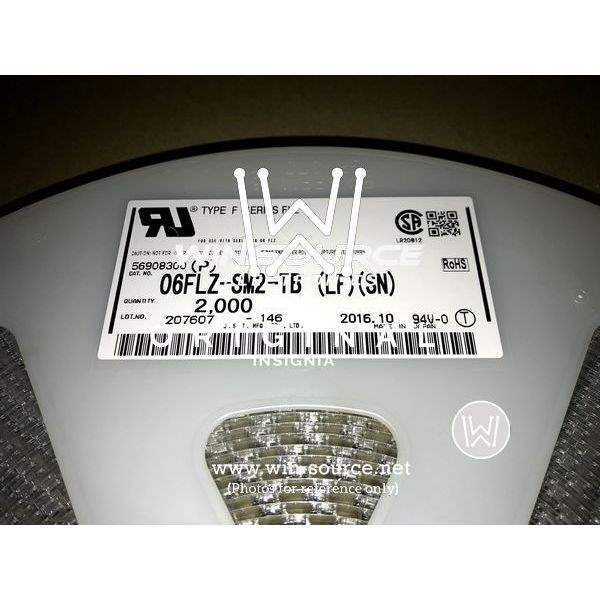

06FLZ-SM2-TB(LF)(SN) JST Sales America Inc. 06FLZ-SM2-TB(LF)(SN) Real Image 06FLZ-SM2-TB(LF)(SN) real image 06FLZ-SM2-TB(LF)(SN) label picture 2 06FLZ-SM2-TB(LF)(SN) real image 2 06FLZ-SM2-TB(LF)(SN) label picture 3 06FLZ-SM2-TB(LF)(SN) real image 3
Same model may have multiple batches, images only for reference.
06FLZ-SM2-TB(LF)(SN) JST Sales America Inc. 06FLZ-SM2-TB(LF)(SN) Real Image 06FLZ-SM2-TB(LF)(SN) real image 06FLZ-SM2-TB(LF)(SN) label picture 2 06FLZ-SM2-TB(LF)(SN) real image 2 06FLZ-SM2-TB(LF)(SN) label picture 3 06FLZ-SM2-TB(LF)(SN) real image 3
06FLZ-SM2-TB(LF)(SN) JST Sales America Inc. 06FLZ-SM2-TB(LF)(SN) Real Image 06FLZ-SM2-TB(LF)(SN) real image 06FLZ-SM2-TB(LF)(SN) label picture 2 06FLZ-SM2-TB(LF)(SN) real image 2 06FLZ-SM2-TB(LF)(SN) label picture 3 06FLZ-SM2-TB(LF)(SN) real image 3
Same model may have multiple batches, images only for reference.

06FLZ-SM2-TB(LF)(SN)

Part No 06FLZ-SM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 6POS 0.50MM R/A
Datasheet
06FLZ-SM2-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 6
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Actuator Material Polyamide (PA6T), Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Gray
Actuator Color Black
Win Source Part Number 1000326-06FLZ-SM2-TB(LF)(SN)
Family Name FLZ
Introduction Date July 12, 2001
ECCN EAR99
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 06FLZ-SM2-TB(LF)(SN) CAD Model

Description

The 1000326-06FLZ-SM2-TB(LF)(SN) is a high-popularity electronic component manufactured by JST Sales America Inc.

  • Connector Type: solder retention and zero insertion force (ZIF)
  • Flex Type: FFC and FPC
  • Cable End Type: tapered
  • Rows: One
  • Positions: 6
  • Mounting: right-angle surface mount
  • Contact Finish: tin
  • Voltage: 50V
  • Current: 0.5A
  • Insulation Material: polyamide (PA6T), nylon 6T
  • Flammability Rating: UL94 V-0
