Same model may have multiple batches, images only for reference.

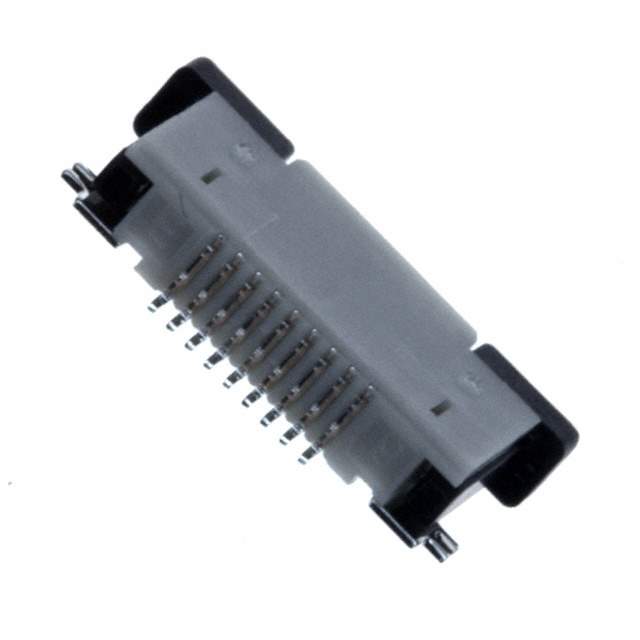

09FLZ-SM2-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

09FLZ-SM2-TB(LF)(SN)

Part No 09FLZ-SM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 9POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Tape and Reel
Flat Flex Type FFC, FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 9
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Dielectric Material Polyamide (PA6T), Nylon 6T
Actuator Material Polyamide (PA6T), Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Gray
Actuator Color Black
Manufacturer Pack Quantity 2,800
MSL Level 1 (Unlimited)
Win Source Part Number 758488-09FLZ-SM2-TB(LF)(SN)
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 09FLZ-SM2-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 758488-09FLZ-SM2-TB(LF)(SN) connector is a contacts, top connector with 9 positions and a pitch of 0.020" (0.50mm).

  • Mounting Style: Surface Mount, Right-Angle
  • Solder Retention: Yes
  • Zero Insertion Force (ZIF): Yes
  • Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Locking Feature: Slide Lock
  • Cable End Type: Tapered
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 2,800
  • MSL Level: 1 (unlimited)
  • Current Rating: 0.5A
