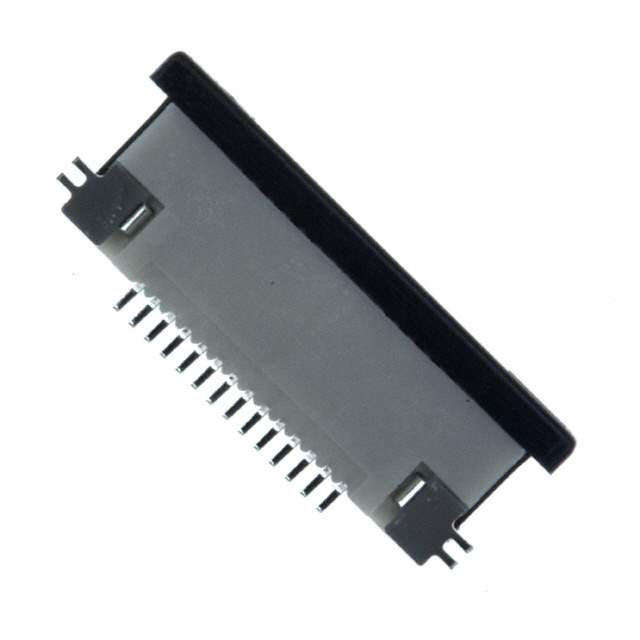

The 14FLZ-SM2-TB is a 1.0mm pitch, ZIF (Zero Insertion Force) FFC/FPC connector manufactured by JST Sales America Inc. This connector is designed to provide a secure and reliable connection for Flat Flex Cables (FFC) and Flat Printed Circuits (FPC) in various electronic devices.

Applications

• LCD Displays
• Notebook PCs
• Digital Cameras
• Mobile Phones
• Printers
• Scanners

Features

• Zero Insertion Force (ZIF): Allows for easy insertion and removal of FFC/FPC cables without damaging the connector or cable.
• 1.0mm Pitch: Compact design for high-density applications.
• Surface Mount Technology (SMT): Designed for automated assembly processes.
• Top Contact: FFC/FPC cable is inserted from the top.
• Secure Locking Mechanism: Ensures a reliable connection even in high-vibration environments.

Benefits

• Easy Cable Insertion/Removal: ZIF design simplifies cable handling and reduces the risk of damage during installation and maintenance.
• Space-Saving: 1.0mm pitch allows for high-density connections in compact electronic devices.
• Automated Assembly: SMT compatibility reduces manufacturing costs and improves production efficiency.
• Reliable Connection: Secure locking mechanism ensures a stable connection, minimizing signal loss and preventing intermittent failures.

Technical Specifications

• Manufacturer: JST Sales America Inc.
• Part Number: 14FLZ-SM2-TB
• Pitch: 1.0mm
• Number of Positions: 14
• Contact Type: Top Contact
• Mounting Type: Surface Mount (SMT)
• Current Rating: Requires consulting the datasheet for the maximum current rating per contact.
• Voltage Rating: Requires consulting the datasheet for the maximum voltage rating.
• Operating Temperature: Requires consulting the datasheet for the operating temperature range.
• Material: Typically made of a high-temperature thermoplastic for the housing and tin-plated copper alloy for the contacts.

Note: The current and voltage ratings, and operating temperature must be confirmed by referring to the official JST datasheet for the 14FLZ-SM2-TB connector.
