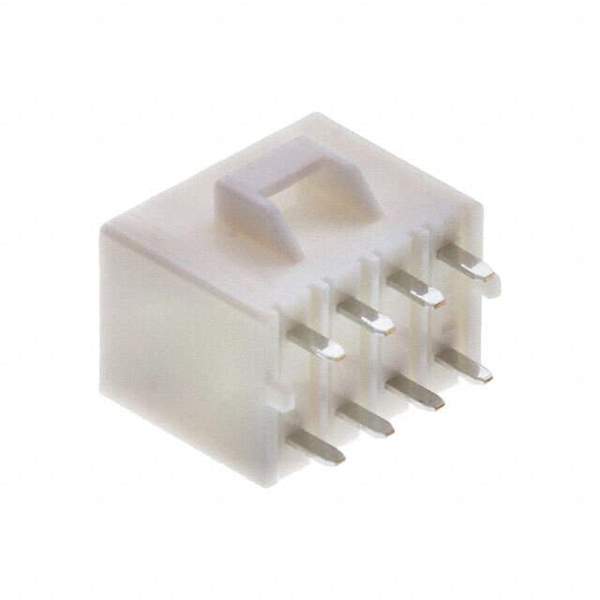

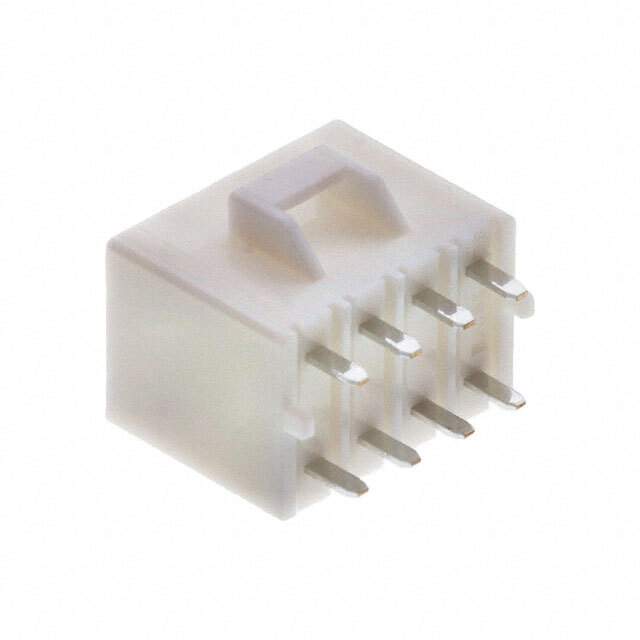

Same model may have multiple batches, images only for reference.

B08P-HL-A(LF)(SN)

Name: B08P-HL-A(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1206062
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B08P-HL-A(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 3.96MM / Connector Header Through Hole 8 position 0.156" (3.96mm)
Datasheet	B08P-HL-A(LF)(SN) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	HL
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.156" (3.96mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	Board Guide
Temperature Range - Operating	-25°C ~ 90°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	7A
Voltage Rating	300V
Base Product Number	B08P
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	455-3558
Standard Package	100
Win Source Part Number	1206062-B08P-HL-A(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B08P-HL-A(LF)(SN) CAD Model

Description

The JST Sales America Inc. HL series header connector is designed for board to cable/wire applications.

Fastening Type: Latch Holder
Positions: 8
Pitch: 0.156 inches (3.96mm)
Features: Board Guide
Mounting Type: Through-Hole
Contact Material: Brass
Contact Finish: Tin
Housing Material: Polyamide (PA66)
Housing Color: Natural
Voltage Rating: 300V
Current Rating: 7A
Temperature Range: -25°C to 90°C
