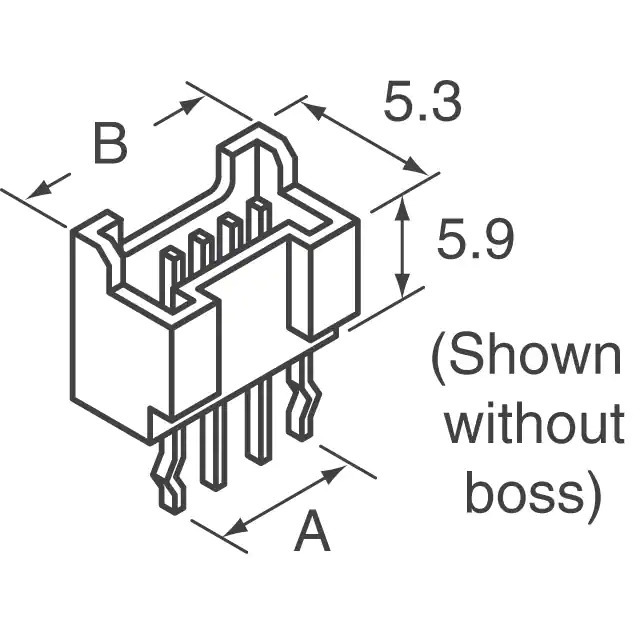

Same model may have multiple batches, images only for reference.
B11B-PASK(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B11B-PASK(LF)(SN)

Part No B11B-PASK(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 11POS 2MM / Connector Header Through Hole 11 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 11
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.126" (3.20mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.319" (8.10mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Contact Finish Thickness - Post -
Applications -
Base Product Number B11B-PAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362529-B11B-PASK(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B11B-PASK(LF)(SN) CAD Model

Description

The 1362529-B11B-PASK(LF)(SN) is a male pin header connector from JST Sales America Inc.

  • Series: PA
  • Mounting Type: Through Hole
  • Current Rating: 3A
  • Temperature Range: -25°C to 85°C
  • Connector Type: Board-to-Cable/Wire
  • Positions: 11
  • Rows: 1
  • Fastening Type: Locking Ramp
  • Contact Termination: Kinked Pin, Solder
  • Design: Shrouded, 4 Walls
  • Pitch: 0.079 inches (2.00mm)
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Color: Natural
  • Voltage Rating: 250V
