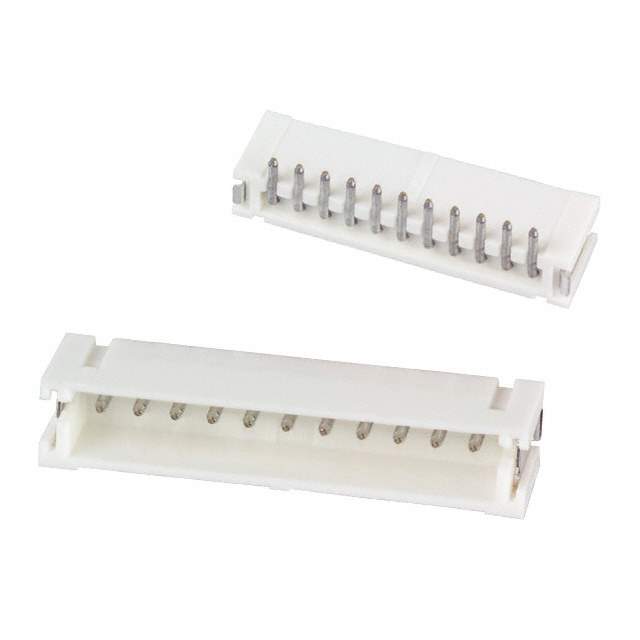

B11B-ZR-SM3-TF Real Image
Same model may have multiple batches, images only for reference.

B11B-ZR-SM3-TF

Part No B11B-ZR-SM3-TF
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 11POS 1.5MM / Connector Header Surface Mount 11 position 0.059" (1.50mm)
Datasheet
B11B-ZR-SM3-TF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZH
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 11
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.197" (5.00mm)
Contact Shape Circular
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1296-2,B11BZRSM3TF,455-1296-1
Standard Package 1,000
Win Source Part Number 1173847-B11B-ZR-SM3-TF
Ultra Librarian 3D Model Ultra Librarian B11B-ZR-SM3-TF CAD Model

Description

This ZH series connector is a male pin header with 11 positions, featuring solder retention and a detent lock for secure fastening.

  • Series: ZH
  • Connector Type: Male pin header
  • Positions: 11
  • Fastening: Detent lock
  • Material: Brass
  • Voltage Rating: 50V
  • Mounting: Surface Mount (SMD/SMT)
  • Shrouded: 4 Walls
  • Pitch: 0.059 inches
  • Contact Finish: Tin-lead
  • Insulation Material: Polyamide (PA46), nylon 4/6, glass filled
  • Application: Board to cable/wire
  • Temperature Range: -25°C to 85°C
  • Package: Tape and reel or cut tape
  • Standard Package: 1,000
  • Insulation Height: 0.197 inches
  • Contact Shape: Circular
  • Alternative to: 455-1296-2 and 455-1296-1
  • Status: Obsolete
  • RoHS Compliance: Non-compliant
