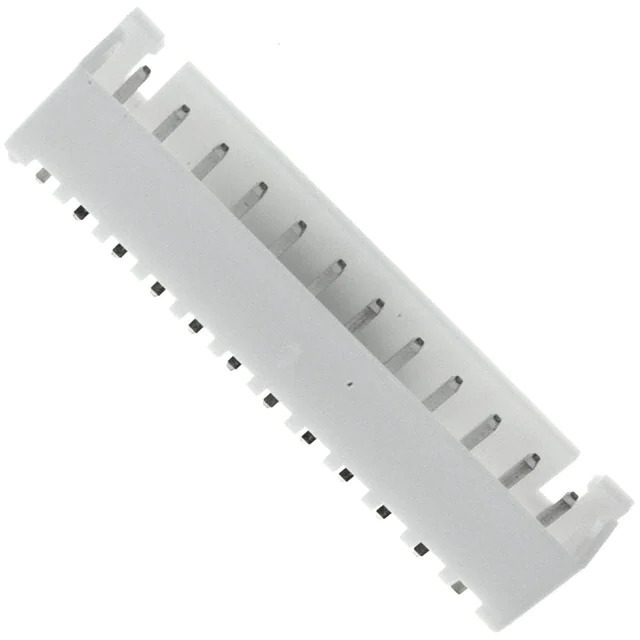

B12B-XH-AM(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B12B-XH-AM(LF)(SN)

Part No B12B-XH-AM(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.5MM / Connector Header Through Hole 12 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length -
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Contact Finish Thickness - Post -
Applications -
Base Product Number B12B-XH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362578-B12B-XH-AM(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B12B-XH-AM(LF)(SN) CAD Model

Description

The 1362578-B12B-XH-AM(LF)(SN) is a header connector manufactured by JST Sales America Inc.

  • Series: XH
  • Mounting Type: Through Hole
  • Current Rating: 3A
  • Application: Board to Cable/Wire
  • Fastening Type: Detent Lock
  • Design: Shrouded 4-Wall with Board Guide
  • Positions: 12
  • Rows: 1
  • Pitch: 0.098" (2.50mm)
  • Row Spacing: None
  • Contact Length for Post: 0.134" (3.40mm)
  • Insulation Height: 0.276" (7.00mm)
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Voltage Rating: 250V
  • Operating Temperature: -25°C to 85°C
