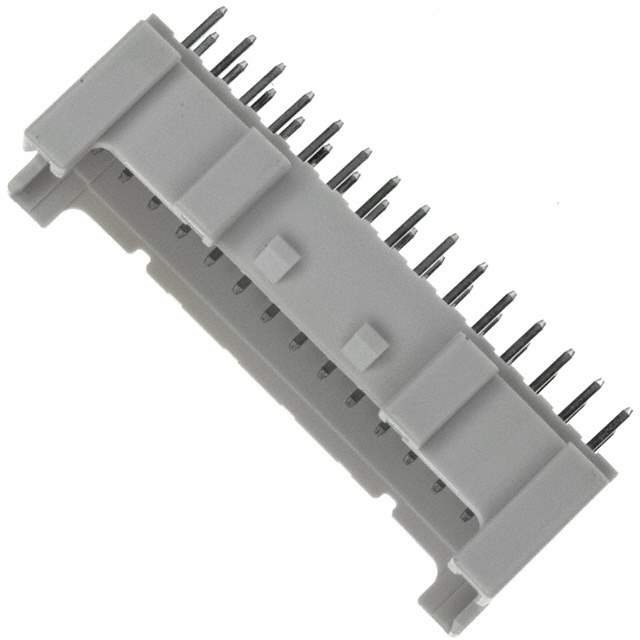

The B30B-PNDZS-1 is a 30-position, 2.0 mm pitch shrouded header from JST Sales America Inc., part of the PND series. It is designed for wire-to-board connections, providing a secure and reliable interface between wires and printed circuit boards.

Applications

• Automotive electronics
• Industrial equipment
• Consumer electronics
• Medical devices
• Data communications equipment

Features

• 30 positions
• 2.0 mm pitch
• Shrouded header design
• Through-hole mounting
• Polarization feature
• RoHS compliant

Benefits

• Provides a reliable and secure connection between wires and boards.
• Prevents mis-mating with the shrouded design.
• Offers high-density connection with 2.0 mm pitch.
• Easy to mount on PCBs with through-hole design.
• Ensures correct orientation with polarization feature.

Additional Details

The B30B-PNDZS-1 connector is designed for demanding applications requiring a robust and reliable connection. The shrouded design protects the contacts from damage and prevents accidental mis-mating. The 2.0 mm pitch allows for high-density connections, saving valuable board space. The through-hole mounting provides a secure mechanical connection to the PCB. The polarization feature ensures that the connector is properly oriented during mating. The B30B-PNDZS-1 is RoHS compliant, ensuring that it meets environmental regulations. It is often used in applications where vibration and shock are present, as the shrouded design and secure mounting help to maintain a stable connection. This connector is compatible with JST's PND series crimp contacts and housings, providing a complete wire-to-board solution.
