Same model may have multiple batches, images only for reference.

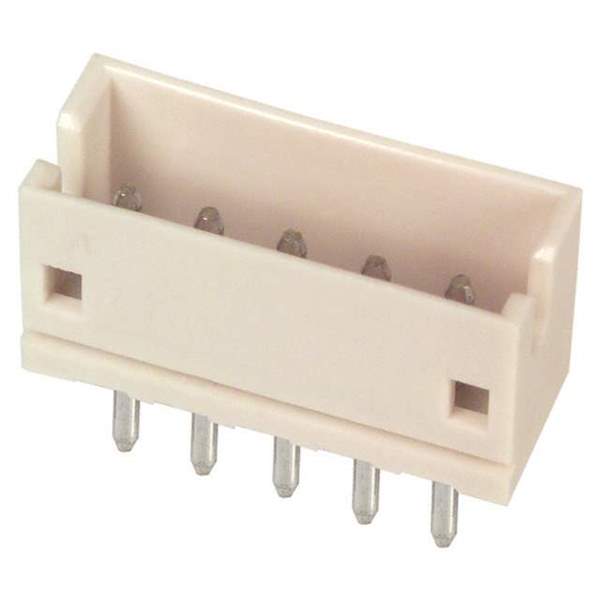

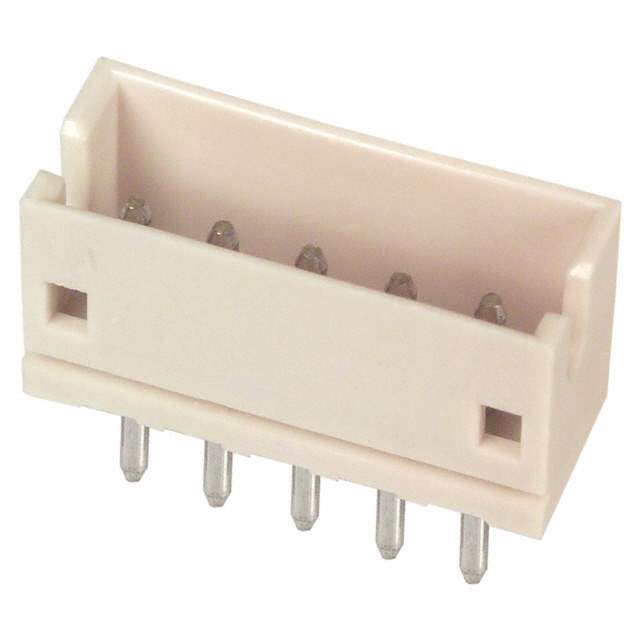

B5B-ZR(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B5B-ZR(LF)(SN)

Part No B5B-ZR(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Through Hole 5 position 0.059" (1.50mm)
Manufacturer JST Sales America Inc.
Series ZH
Package Bulk
Operating Temperature Range -25°C ~ 85°C
Mounting Through Hole
Family Name B5B-ZR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number (Q)B5B-ZR(LF)(SN), 455-1660, B5BZRLFSN
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863134-B5B-ZR(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B5B-ZR(LF)(SN) CAD Model

Description

The JST Sales America Inc. 863134-B5B-ZR(LF)(SN) electronic component is part of the ZH series.

  • Component Type: Connector header
  • Mounting Type: Through-hole
  • Positions: 5
  • Pitch: 0.059" (1.50mm)
  • Packaging: Bulk
  • Supply and Demand Status: Limited
  • Quantity per Package: 2000
  • Estimated Production Lead Time: 33 weeks
