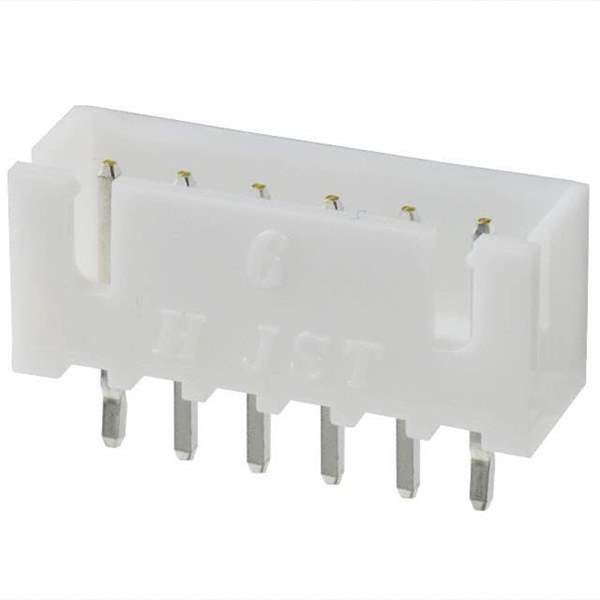

B6B-XH-A(LF)(SN)

Name: B6B-XH-A(LF)(SN)
Brand: JST Sales America Inc.
SKU: 769534
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B6B-XH-A(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER XH TOP 6POS 2.5MM / Conn Shrouded Header HDR 6 POS 2.5mm Solder ST Thru-Hole Box
Datasheet	B6B-XH-A(LF)(SN) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Series	XH
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Mounting Style	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.276" (7.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Operating Temperature Range	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating	3A
Voltage Rating	250V
Mated Stacking Heights	9.8mm
Win Source Part Number	769534-B6B-XH-A(LF)(SN)
Popularity	Medium
Supply and Demand Status	Limited
Family Name	XH
Introduction Date	July 11, 2001
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian B6B-XH-A(LF)(SN) CAD Model

Description

The XH series 6-position male pin header connector is a rectangular connector that is ideal for use in various electronic applications.

Pitch: 2.50mm
Mounting: Press-fit and Soldered
Fastening Type: Detent Lock
Voltage Rating: 250V
Current Rating: 3A
Contact Material: Brass
Insulation Material: Polyamide (PA66) and Nylon 6/6
Shrouding: 4 wall
Contact Shape: Square
Operating Temperature: -25°C to 85°C
RoHS Compliant: Yes
Packaging: Bulk
