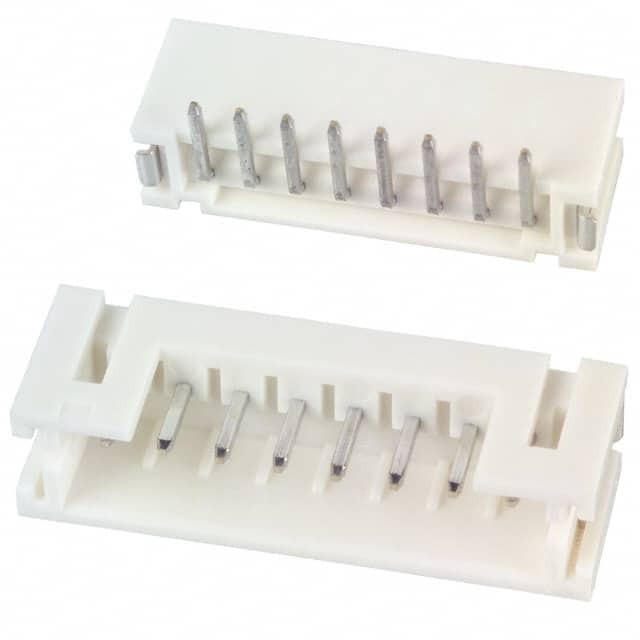

B8B-PH-SM3-TB

Name: B8B-PH-SM3-TB
Brand: JST Sales America Inc.
SKU: 863332
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	B8B-PH-SM3-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 8POS 2MM / Connector Header Surface Mount 8 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PH
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Insulation Height	0.260" (6.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA46), Nylon 4/6
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Mated Stacking Heights	8.6mm
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	863332-B8B-PH-SM3-TB
Ultra Librarian 3D Model	Ultra Librarian B8B-PH-SM3-TB CAD Model

Alternative Products

Description

The 863332-B8B-PH-SM3-TB is a male pin header connector from the PH series.

Design: Solder retention
Positions: 8
Contact Material: Copper alloy
Voltage Rating: 100V
Application: Board to cable/wire
Pitch: 0.079" (2.00mm)
Contact Finish (Mating): Tin-lead
Contact Finish (Post): Tin-lead
Mounting Type: Surface mount
Shrouded: 4 walls
Operating Temperature Range: -25°C to 85°C
Packaging: Tape & reel or cut tape
Standard Package: 1,000 pcs
