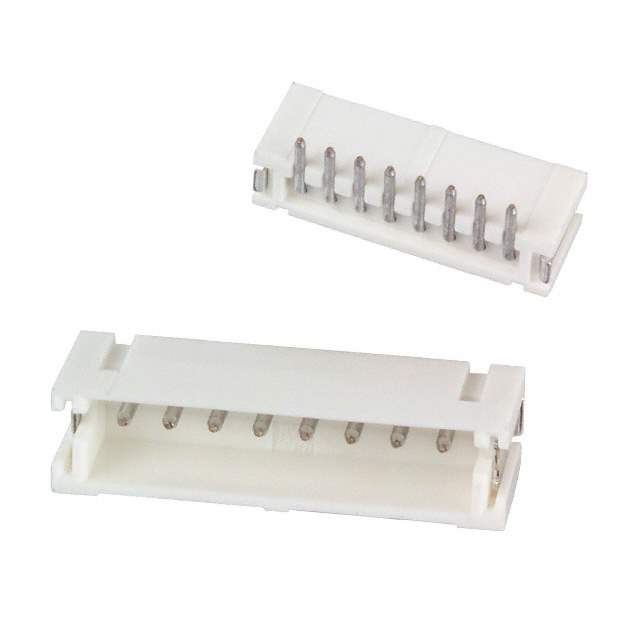

B8B-ZR-SM4-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B8B-ZR-SM4-TF(LF)(SN)

Part No B8B-ZR-SM4-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER ZH TOP 8POS 1.5MM
Datasheet
B8B-ZR-SM4-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.197" (5.00mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 6.4mm
Win Source Part Number 000183-B8B-ZR-SM4-TF(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B8B-ZR-SM4-TF(LF)(SN) CAD Model

Description

B8B-ZR-SM4-TF(LF)(SN)

The B8B-ZR-SM4-TF(LF)(SN) is a premium connector offering an optimized solution for demanding applications, where reliability is key.

  • High-density server racks
  • Advanced computing devices
  • Audio and video transmission systems

Features and Benefits

  • Lead-free and RoHS compliant, ensuring environmental safety
  • Precision-engineered for high reliability
  • Compatible with high-speed data transmission requirements

This connector is essential for systems requiring high-quality and dependable interconnections.
