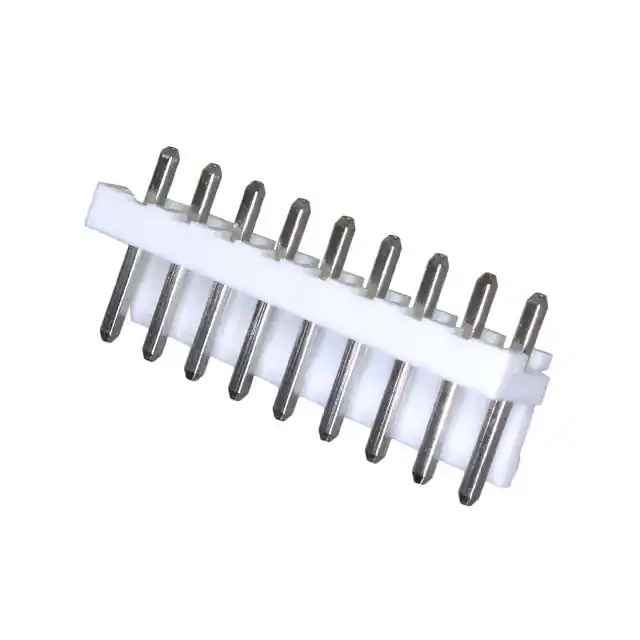

B9P-VH-B(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B9P-VH-B(LF)(SN)

Part No B9P-VH-B(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 9POS 3.96MM / Connector Header Through Hole 9 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series VH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 9
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.370" (9.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number B9P-VH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362576-B9P-VH-B(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B9P-VH-B(LF)(SN) CAD Model

Description

The 1177745 is a male pin header connector designed for use in electronic applications. 1177745 is from JST Sales America Inc..

  • Connector Type: Header
  • Contact Type: Male Pin
  • Number of Positions: 9
  • Number of Rows: 1
  • Pitch: 0.156 inches (3.96mm)
  • Mounting Type: Through Hole
  • Status: Active
  • Current Rating: 10A
  • Voltage Rating: 250V
  • Fastening Type: Locking Ramp
