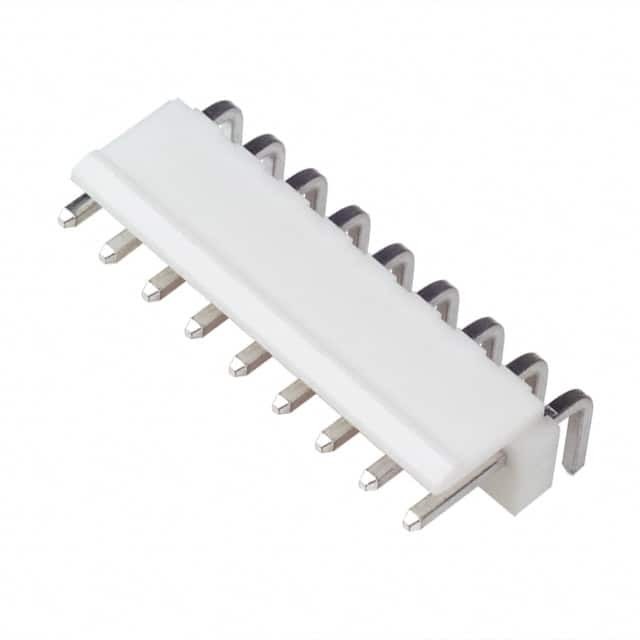

B9PS-VH

Name: B9PS-VH
Brand: JST Sales America Inc.
SKU: 863360
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	B9PS-VH
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 9POS 3.96MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	VH
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	9
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.335" (8.51mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	10A
Voltage Rating	250V
Standard Package	200 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	863360-B9PS-VH
Ultra Librarian 3D Model	Ultra Librarian B9PS-VH CAD Model

Alternative Products

Description

The 863360-B9PS-VH is a male pin header connector from the VH series. It is designed for through hole, right angle mounting and has a shrouded 1-wall design.

Series: VH
Mounting Type: through hole, right angle
Design: shrouded 1-wall
Positions: 9
Loaded: all positions
Fastening Type: locking ramp
Termination: solder
Contact Material: brass
Contact Finish: tin-lead
Voltage Rating: 250V
Current Rating: 10A
Application: board to cable/wire
Pitch: 0.156" (3.96mm)
Operating Temperature Range: -25°C to 85°C
Manufacturer: JST Sales America Inc.
Status: obsolete
Package: bulk
Quantity: 200 pieces
