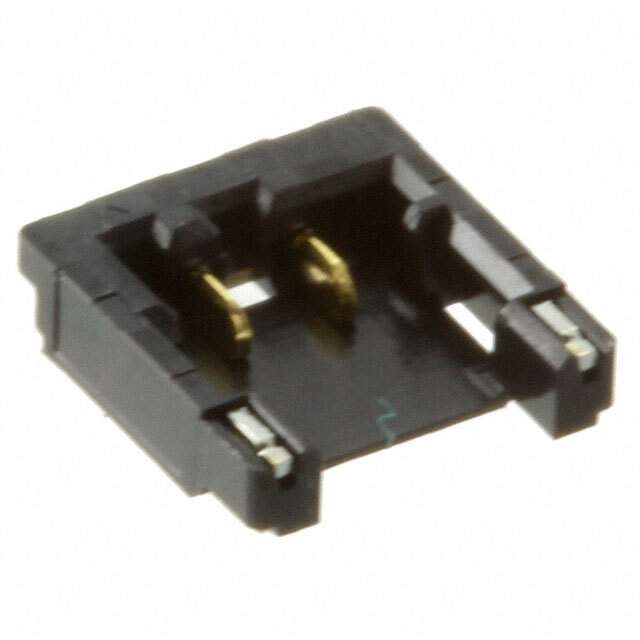

BM02B-ACHLKS-GAN-ETF(LF)(SN) Real Image1 BM02B-ACHLKS-GAN-ETF(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.
BM02B-ACHLKS-GAN-ETF(LF)(SN) Real Image1 BM02B-ACHLKS-GAN-ETF(LF)(SN) Real Image2
BM02B-ACHLKS-GAN-ETF(LF)(SN) Real Image1 BM02B-ACHLKS-GAN-ETF(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.

BM02B-ACHLKS-GAN-ETF(LF)(SN)

Part No BM02B-ACHLKS-GAN-ETF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 2POS 1.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount, Right Angle 2 position 0.047" (1.20mm)
Manufacturer JST Sales America Inc.
Series ACHL
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name BM02B-AC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-2896-6, 455-2896-1, 455-2896-2, BM02BACHLKSGANETFLFSN
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864349-BM02B-ACHLKS-GAN-ETF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM02B-ACHLKS-GAN-ETF(LF)(SN) CAD Model

Description

The BM02B-ACHLKS-GAN-ETF(LF)(SN) is a 2-position connector header with a pitch of 0.047" (1.20mm).

  • Positions: 2
  • Pitch: 0.047" (1.20mm)
  • Mounting: Surface mountable
  • Orientation: Right-angle
  • Series: ACHL
  • Package: Reel package of 5000 units
  • Operating Temperature Range: -25°C to 85°C
  • ECCN: EAR99 compliant
  • Suitable for: Industrial and automotive applications
