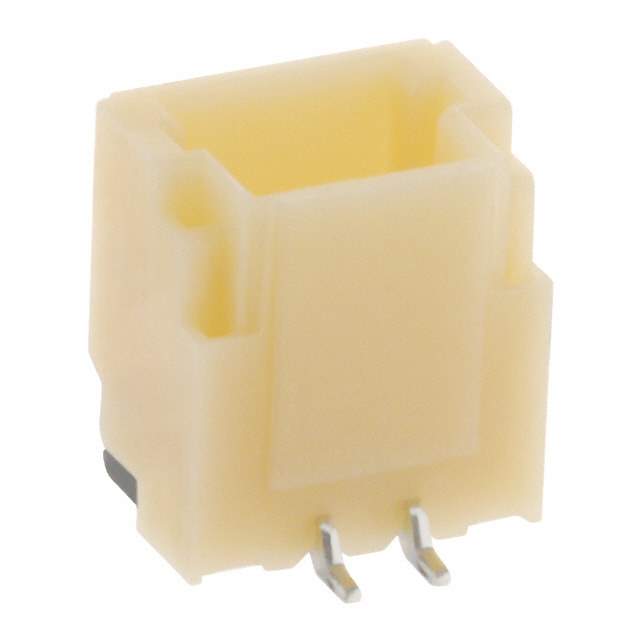

BM02B-SRSS-TB

Name: BM02B-SRSS-TB
Brand: JST Sales America Inc.
SKU: 722707
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	BM02B-SRSS-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	Disconnectable Insulation displacement connectors \| CONN HEADER SMD 2POS 1MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Cut Tape (CT)
Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.167" (4.25mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	0.7A
Voltage Rating	50V
Mated Stacking Heights	4.9mm
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	722707-BM02B-SRSS-TB
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian BM02B-SRSS-TB CAD Model

Alternative Products

Description

The 722707-BM02B-SRSS-TB electronic component is a 2-position male pin header connector.

Pitch-Mating: 0.039" (1.00mm)
Voltage Rating: 50V
Contact Material: Copper Alloy
Material Flammability Rating: UL94 V-0
Insulation Material: Polyamide (PA), Nylon
