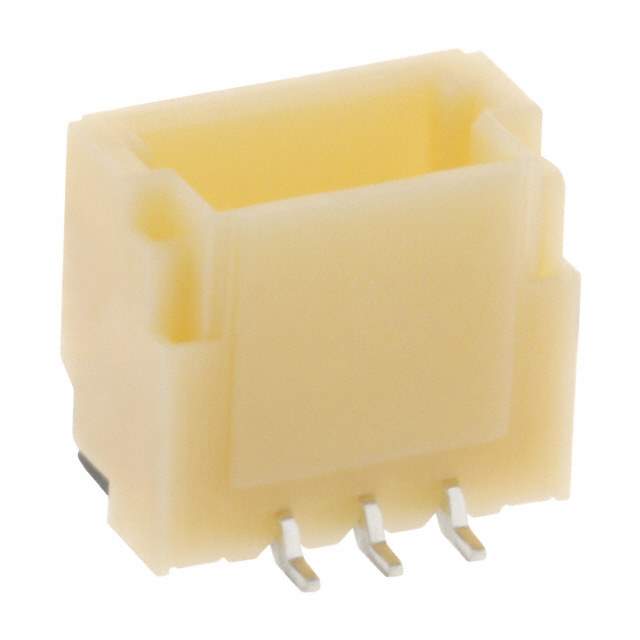

The BM03B-SRSS-TB is a 3-position header from JST Sales America Inc., part of the SR series of crimp-style connectors. These connectors are designed for secure and reliable wire-to-board connections. They are typically used in a wide variety of electronic devices and equipment for power and signal transmission.

Applications

• Wire-to-board connections
• Power supply connections
• Signal connections
• Internal wiring in electronic devices
• Control systems

Features

• 3 Positions
• Crimp Style Termination
• Surface Mount
• Compact Design
• RoHS Compliant

Benefits

• Secure and reliable connection
• Easy to assemble
• Space-saving design
• Meets environmental regulations
• Suitable for automated assembly

Technical Specifications

The BM03B-SRSS-TB is a 3-position header with a pitch (distance between pins) of typically 2.5mm or 2.54mm. It is designed for surface mount soldering onto a PCB. The connector body is made of a durable plastic material. The contacts are typically made of tin-plated brass or phosphor bronze. The voltage rating and current rating depend on the wire size used with the crimp terminals, but are typically in the range of 250V and 3A, respectively. The operating temperature range is generally -25°C to +85°C.

For detailed information on the specific dimensions, mating force, unmating force, and wire gauge compatibility, consult the official JST datasheet for the SR series connectors. The datasheet provides essential guidance on selecting the correct crimp terminals, tooling, and PCB layout recommendations to ensure a secure and reliable connection.
