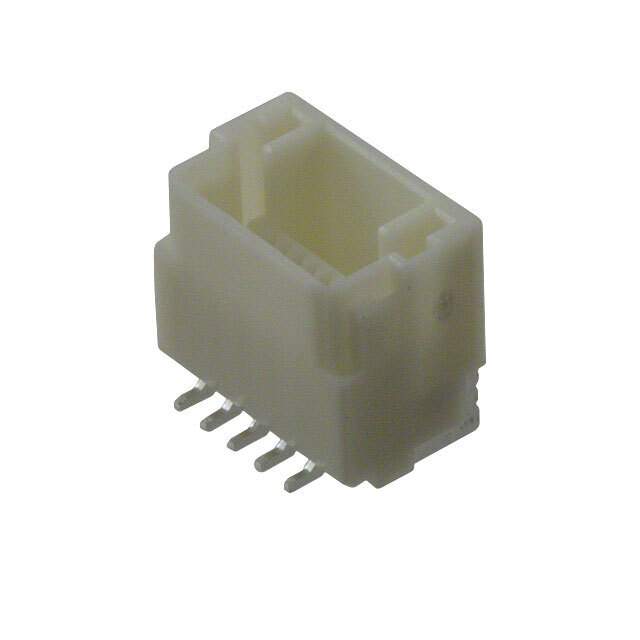

BM05B-NSHSS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM05B-NSHSS-TBT(LF)(SN)

Part No BM05B-NSHSS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 5POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount 5 position 0.039" (1.00mm)
Manufacturer JST Sales America Inc.
Series NSH
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount
Family Name BM05B-NS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number BM05BNSHSSTBTLFSN, 455-2759-6, BM05B-NSHSS-TBT (LF)(SN), 455-2759-1, 455-2759-2
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864358-BM05B-NSHSS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM05B-NSHSS-TBT(LF)(SN) CAD Model

Description

The BM05B-NS connector header surface mount product is manufactured by JST Sales America Inc.

  • Positions: 5
  • Pitch: 0.039 inches (1.00mm)
  • Series: NSH
  • Popularity: Medium
