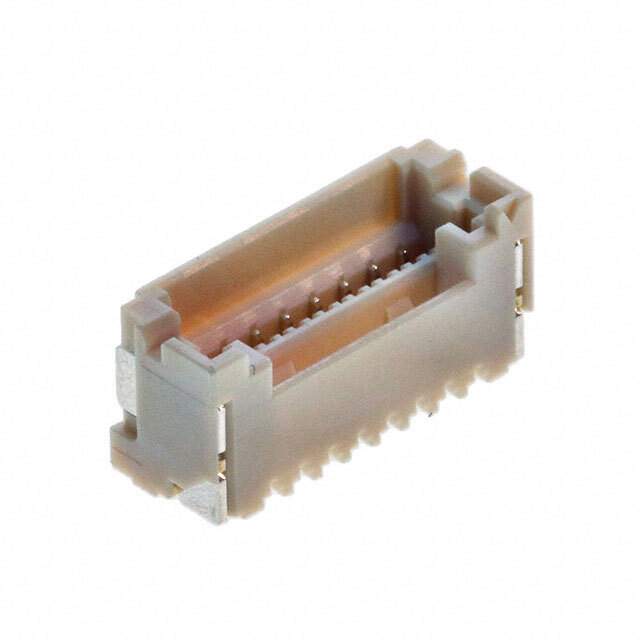

The BM08B-ZESS-TBT (LF)(SN) is an 8-position, 2.5mm pitch, top-entry SMT header manufactured by JST Sales America Inc. This connector is designed for board-to-wire connections and is commonly used in a variety of electronic applications to provide reliable and secure connections between PCBs and wire harnesses. The 'LF' designation indicates that it is lead-free, and the 'SN' might pertain to a specific tin plating.

Applications:

• Automotive electronics (e.g., control units, sensors)
• Industrial automation equipment (e.g., PLCs, HMIs)
• Consumer electronics (e.g., audio equipment, appliances)
• Medical devices (e.g., monitoring equipment, diagnostic tools)
• Data communication equipment (e.g., routers, switches)

Features:

• 8 positions for multiple wire connections
• 2.5mm pitch for compact design and high density
• Top-entry configuration for easy wire insertion
• Surface mount technology (SMT) for automated assembly
• Lead-free construction for environmental compliance

Benefits:

• Reliable electrical connection for optimal performance
• Compact design for space-saving applications
• Easy and efficient wire termination
• Cost-effective solution for board-to-wire connections
• Compliance with environmental regulations

The BM08B-ZESS-TBT (LF)(SN) connector provides a secure and durable connection, ensuring signal integrity and preventing accidental disconnections. The SMT design is ideal for high-volume production, allowing for automated placement and soldering. The lead-free construction meets current environmental standards, making it suitable for use in global markets.

Technical Specifications:

The connector has a current rating of approximately 3A per contact, a voltage rating of around 250V AC/DC, and an operating temperature range of -25°C to +85°C. The insulation resistance is typically greater than 1000 MΩ. The housing material is typically a high-temperature resistant plastic suitable for reflow soldering. Consult the manufacturer's datasheet for detailed specifications and recommended PCB layout guidelines to ensure proper soldering and reliable performance. Insertion and withdrawal forces are also detailed within datasheets to give design engineers parameters for product integration and lifecycle concerns.
