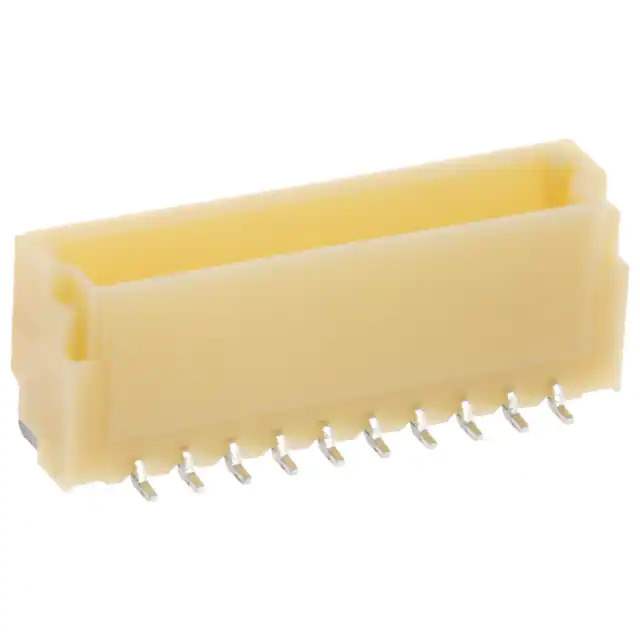

BM10B-SRSS-TB JST Sales America Inc. BM10B-SRSS-TB Real Image
Same model may have multiple batches, images only for reference.
BM10B-SRSS-TB JST Sales America Inc. BM10B-SRSS-TB Real Image
BM10B-SRSS-TB JST Sales America Inc. BM10B-SRSS-TB Real Image
Same model may have multiple batches, images only for reference.

BM10B-SRSS-TB

Part No BM10B-SRSS-TB
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 1MM / Connector Header Surface Mount 10 position 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series SH/SR
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 744881-BM10B-SRSS-TB
Ultra Librarian 3D Model Ultra Librarian BM10B-SRSS-TB CAD Model

Description

The 744881-BM10B-SRSS-TB is a male pin header connector from the SH/SR series.

  • Series: SH/SR
  • Positions: 10
  • Features: Solder Retention
  • Material: Copper Alloy
  • Voltage Rating: 50V
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Application: Board to cable/wire
  • Mating Pitch: 0.039" (1.00mm)
  • Contact Finish (Mating): Tin-Lead
  • Contact Finish (Post): Tin-Lead
  • Insulation Material: Polyamide (PA) and Nylon
  • Operating Temperature: -25°C to 85°C
  • Packaging: Tape & reel (TR) and cut tape (CT)
  • Standard Package: 1,500 pcs
  • Insulation Height: 0.167" (4.25mm)
  • Contact Shape: Square
  • Status: Obsolete
