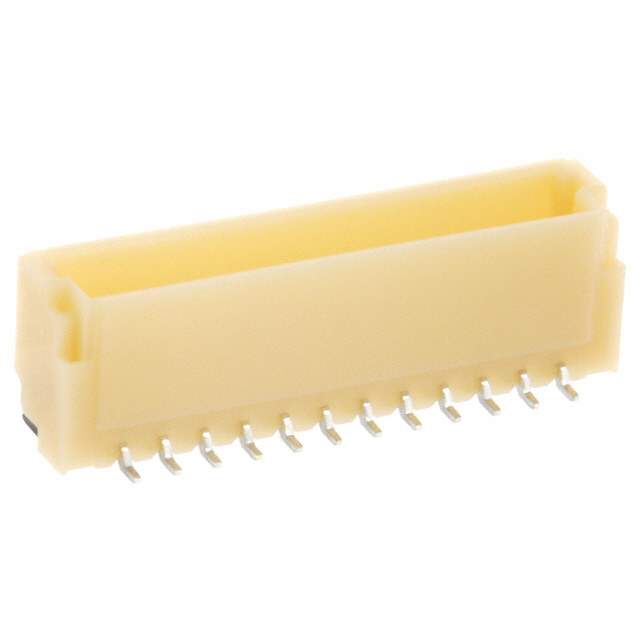

BM12B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM12B-SRSS-TB(LF)(SN)

Part No BM12B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 12POS TOP 1MM TIN
Datasheet
BM12B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series SR
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Win Source Part Number 722714-BM12B-SRSS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Family Name SH
Introduction Date July 11, 2001
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BM12B-SRSS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 722714-BM12B-SRSS-TB(LF)(SN) connector is a 12-position male pin connector with a push-pull fastening type.

  • Positions: 12
  • Fastening Type: Push-Pull
  • Feature: Shrouded 4-Wall, Solder Retention
  • Material: Copper Alloy
  • Plating: Tin
  • Voltage Rating: 50V
  • Pitch: 0.039 inches
  • Mated Stacking Height: 4.9mm
  • Insulation Material: Polyamide (PA) or Nylon
  • Application: Board to Cable/Wire
  • Temperature Range: -25°C to 85°C
  • Estimated EOL Date: 2024
