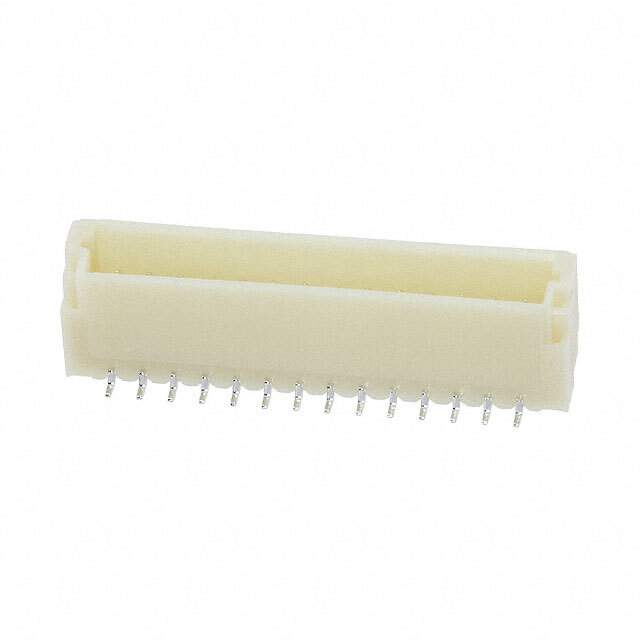

BM14B-SRSS-TBT(LF)(SN)

Part No BM14B-SRSS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount 14 position 0.039" (1.00mm)
Manufacturer JST Sales America Inc.
Series SH/SR
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount
Family Name BM14B-SR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number Q5575505T, 455-2961-1, BM14B-SRSS-TBT(LF)(SN)-ND, 455-2961-2, (G)BM14B-SRSS-TBT(LF)(SN), 455-2961-6
Quantity per package 1500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864393-BM14B-SRSS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM14B-SRSS-TBT(LF)(SN) CAD Model

Description

The BM14B-SRSS-TBT(LF)(SN) is a 1.0mm pitch SMT header from JST's BM series of wire-to-board connectors. This connector is designed for high-density mounting and secure electrical connections in compact electronic devices.

Applications:

  • LCD displays and monitors
  • Notebook PCs
  • Mobile phones
  • Digital cameras
  • Printers
  • Navigation systems
  • Various compact electronic devices requiring wire-to-board connections

Features:

  • Pitch: 1.0mm
  • Mounting Style: Surface Mount Technology (SMT)
  • Contact Material: Phosphor bronze
  • Housing Material: PA (Polyamide)
  • Plating: Tin plating over nickel underplating
  • Number of Contacts: Typically 14, but variants exist; confirm based on specific datasheet.
  • Current Rating: 1.0A AC/DC
  • Voltage Rating: 50V AC/DC
  • Operating Temperature: -25°C to +85°C (including temperature rise in applying electrical current)
  • RoHS Compliant: Yes

Benefits:

  • Compact Design: 1.0mm pitch enables high-density mounting, saving valuable board space.
  • Secure Connection: Ensures reliable electrical contact, minimizing signal loss and preventing disconnections.
  • Automated Assembly: Designed for SMT, allowing for efficient and cost-effective automated assembly processes.
  • Durable Construction: High-quality materials and robust design ensure long-term reliability and resistance to environmental factors.
  • RoHS Compliance: Meets environmental regulations, making it suitable for use in environmentally conscious applications.

Additional Details:

The BM14B-SRSS-TBT(LF)(SN) connector is supplied in embossed tape packaging for automated pick-and-place assembly. The (LF) designation indicates that the connector is lead-free, complying with RoHS standards. The (SN) probably refers to tin plating. Refer to the official JST datasheet for precise dimensional drawings, mating connector information, and recommended PCB layout patterns to ensure optimal performance and reliability.
