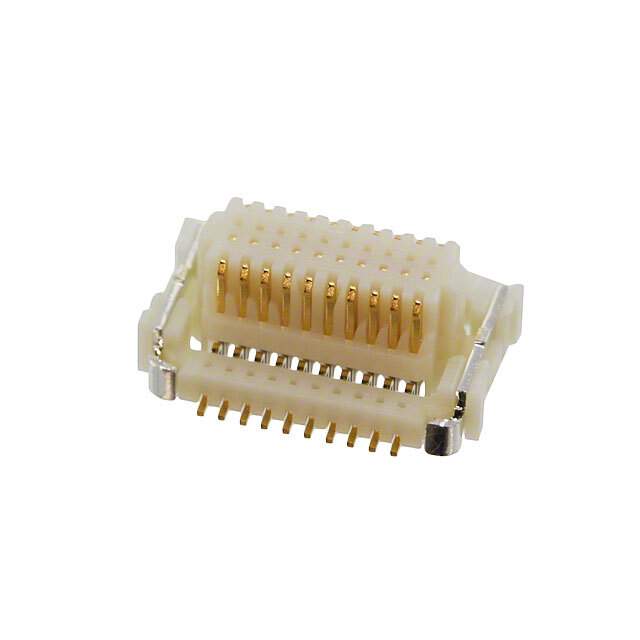

20RF-JMCS-G-1-TF(N)(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

20RF-JMCS-G-1-TF(N)(LF)(SN)

Part No 20RF-JMCS-G-1-TF(N)(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20POS SMD GOLD / 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JST Sales America Inc.
Series JMC
Package Tape & Reel
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Height Above Board 0.130" (3.30mm)
Base Product Number 20RF-JMC
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340872-20RF-JMCS-G-1-TF(N)(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 20RF-JMCS-G-1-TF(N)(LF)(SN) CAD Model

Description

The 1340872-20RF-JMCS-G-1-TF(N)(LF)(SN) is a 20-position receptacle connector with center strip contacts.

  • Product Name: 1340872-20RF-JMCS-G-1-TF(N)(LF)(SN)
  • Number of Positions: 20
  • Connector Type: Receptacle
  • Contact Type: Center Strip
  • Series: JMC
  • Connector Style: Edge Type Mezzanine (Board to Board)
  • Pitch: 0.020 inches (0.50mm)
  • Solder Retention: Yes
  • Height Above Board: 0.130 inches (3.30mm)
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Package: Tape and Reel
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: JST Sales America Inc.
