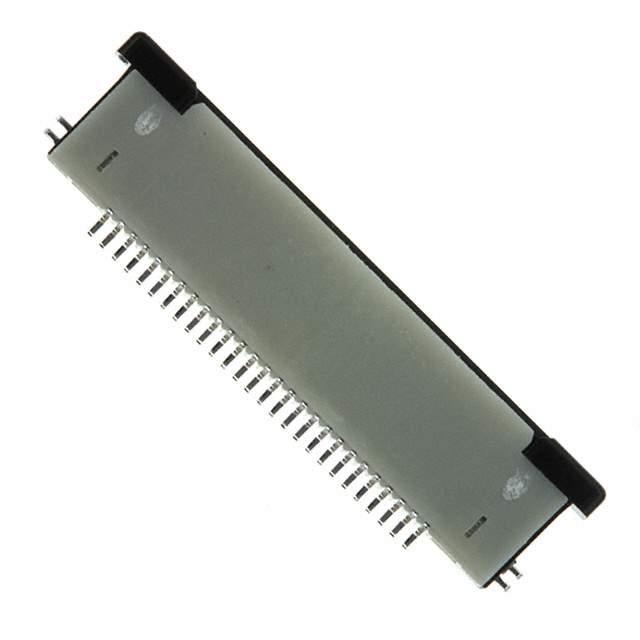

27FLZ-SM2-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

27FLZ-SM2-TB(LF)(SN)

Part No 27FLZ-SM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 27POS 0.50MM R/A / 27 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 27
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Actuator Material Polyamide (PA6T), Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Gray
Actuator Color Black
Base Product Number 27FLZ-SM
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 27FLZ-SM2-TB(LF)(SN)(P),455-1981-6,27FLZSM2TBLFSNP,455-1981-2,455-1981-1
Standard Package 2,800
Win Source Part Number 1333296-27FLZ-SM2-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 27FLZ-SM2-TB(LF)(SN) CAD Model

Description

The 1333296-27FLZ-SM2-TB(LF)(SN) is a 27-position FFC/FPC Connector Assembly manufactured by JST Sales America Inc.

  • Feature: Zero Insertion Force (ZIF) and Solder Retention
  • Pitch: 0.020" (0.50mm)
  • Height Above Board: 0.079" (2.00mm)
  • Connector/Contacts Type: Top Contacts
  • FFC/FPC Thickness: 0.30mm
  • Housing and Actuator Material: Polyamide (PA6T) and Nylon 6T
  • Material Flammability Rating: UL94 V-0
  • Locking Feature: Slide Lock
  • Cable End Type: Tapered
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Mounting Style: Surface Mount and Right-Angle
  • Temperature Range: -25°C ~ 85°C
  • RoHS Compliant: True
  • Standard Package: 2,800 units
