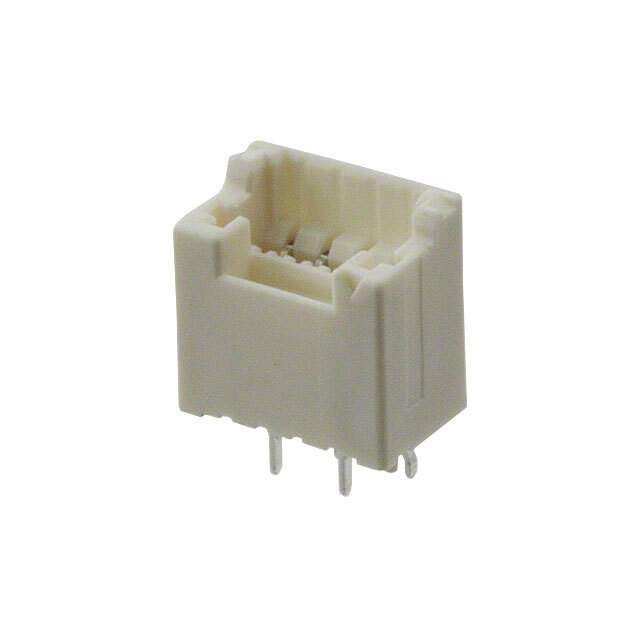

B04B-ZESK-1D(T)(LF)(SN)(N) Real Image
Same model may have multiple batches, images only for reference.

B04B-ZESK-1D(T)(LF)(SN)(N)

Part No B04B-ZESK-1D(T)(LF)(SN)(N)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 1.5MM / Connector Header Through Hole 4 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tray
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66) , Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Base Product Number B04B-ZES
Standard Package 1,664
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349604-B04B-ZESK-1D(T)(LF)(SN)(N)
Ultra Librarian 3D Model Ultra Librarian B04B-ZESK-1D(T)(LF)(SN)(N) CAD Model

Description

The ZE series 4 position male pin header connector is a through-hole connector designed for board-to-cable/wire applications. Bold the product name (e.g., BAV99S,135 → ZE series).

  • Number of Positions: 4
  • Mounting Type: Through Hole
  • Application: Board-to-Cable/Wire
  • Fastening Type: Locking Ramp
  • Contact Material: Copper Alloy
  • Mating Finish: Tin
  • Post Finish: Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Insulation Height: 0.335" (8.51mm)
  • Contact Length (Post): 0.134" (3.40mm)
  • RoHS Compliant: Yes
  • REACH: Unaffected
