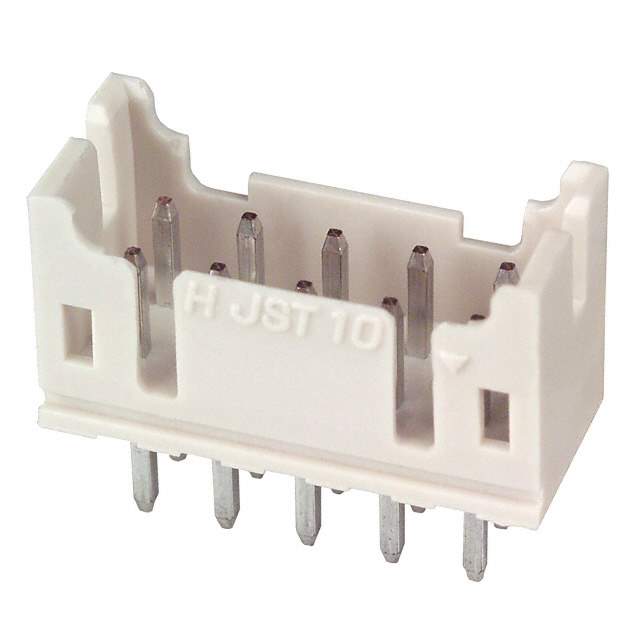

B10B-PHDSS

Part No B10B-PHDSS
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Datasheet
B10B-PHDSS Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PHD
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.114" (2.90mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.291" (7.40mm)
Insulation Height 0.256" (6.50mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Polyamide (PA) , Nylon, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.8mm
Standard Package 500
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348500-B10B-PHDSS
Ultra Librarian 3D Model Ultra Librarian B10B-PHDSS CAD Model

Description

The PHDSS series header is a male pin connector used in board to cable/wire applications.

  • Positions: 10
  • Pitch-Mating: 0.079” (2.00mm)
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Features: Shrouded-4 wall with a detent lock fastening type
  • Contact Material: Copper alloy
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Contact Finish-Mating: Tin-Lead
  • Contact Finish-Post: Tin-Lead
  • Mounting: Through-hole
  • Package Size: 0.291” (7.40mm) overall contact length
  • Mated Stacking Height: 8.8mm
  • Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
  • ECCN: EAR99
