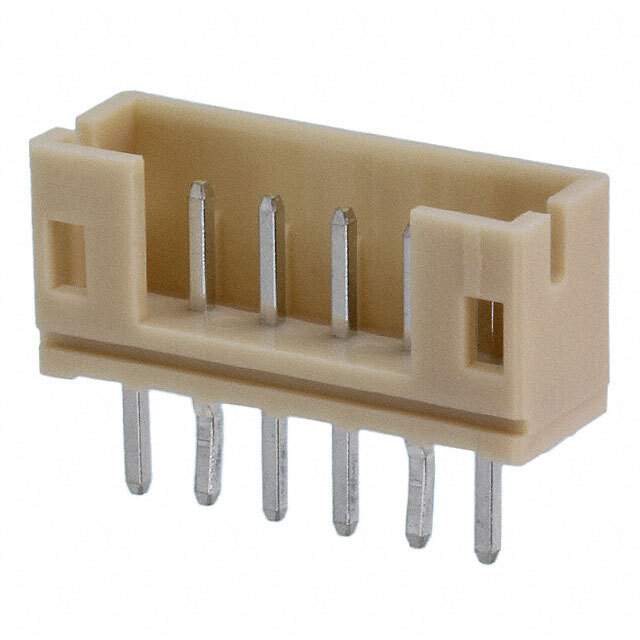

B6B-PH-K(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B6B-PH-K(LF)(SN)

Part No B6B-PH-K(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2MM / Connector Header Through Hole 6 position 0.079" (2.00mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.333" (8.45mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Ivory
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8mm
Base Product Number B6B-PH-K
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number B6B-PH-K(LF)(SN)-ND,(D)B6B-PH-K(LF)(SN)(P),455-2923,Q5993129C
Standard Package 1,000
Win Source Part Number 1332576-B6B-PH-K(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B6B-PH-K(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1332576-B6B-PH-K(LF)(SN) is a 6-position rectangular connector header with a 1-row design.

  • Number of Positions: 6
  • Number of Rows: 1
  • Termination: Press-Fit and Solder
  • Contact Material: Brass
  • Connector Type: Header
  • Contact Type: Male Pin
  • Fastening Type: Detent Lock
  • Voltage Rating: 100V
  • Insulation Material: Polyamide (PA66), nylon 6/6
  • Material Flammability Rating: UL94 V-0
  • Application: Board-to-Cable/Wire
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Contact Finish: Tin
  • Temperature Range: -25°C to 85°C
  • RoHS Compliant: Yes
  • Standard Package: 1,000
  • Mounting: Through Hole
  • Shrouding: Shrouded-4 Wall
  • Contact Length of Post: 0.134 inches (3.40mm)
  • Insulation Height: 0.236 inches (6.00mm)
