Same model may have multiple batches, images only for reference.

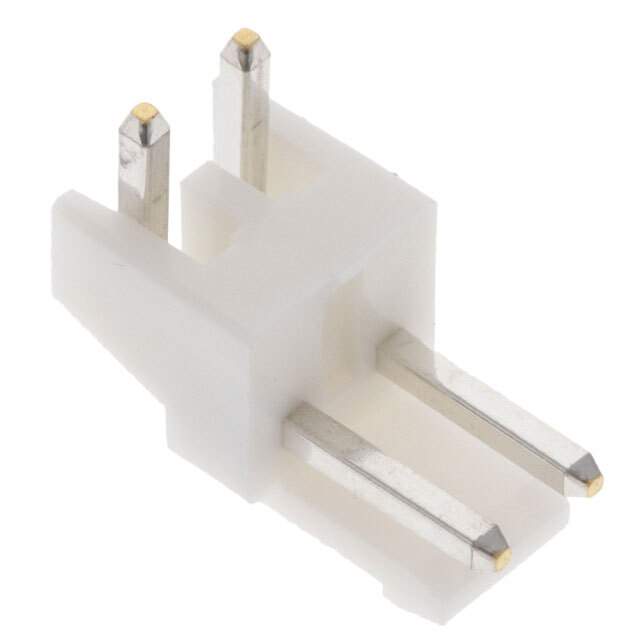

S2P-VH(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S2P-VH(LF)(SN)

Part No S2P-VH(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series VH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Base Product Number S2P-VH(L
Other Names S2P-VH (LF)(SN),S2P-VH (LF)(SN),S2P-VH (LF) (SN)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293261-S2P-VH(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S2P-VH(LF)(SN) CAD Model

Description

The 1293261-S2P-VH(LF)(SN) is a rectangular connector header with male pins manufactured by JST Sales America Inc.

  • Fastening Type: Locking Ramp
  • Shrouding: Shrouded 1 Wall
  • Style: Board to Cable/Wire
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Insulation Material: Polyamide, Nylon 6/6
  • Contact Shape: Square
  • Insulation Color: Natural
