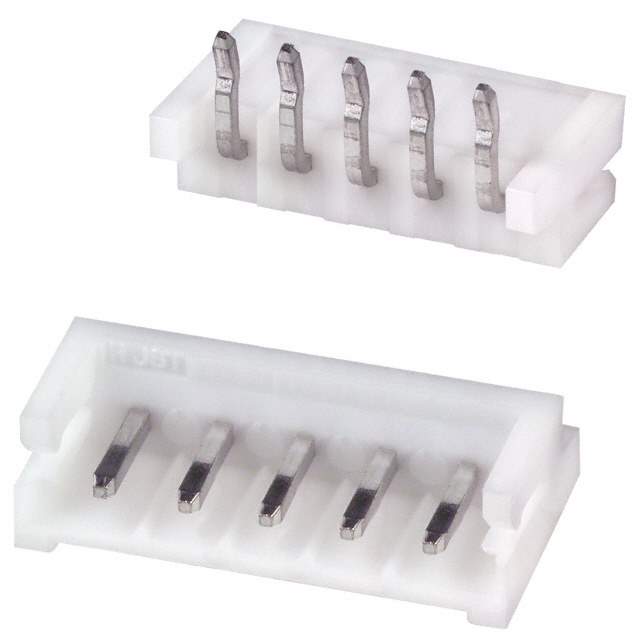

S5B-EH(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S5B-EH(LF)(SN)

Part No S5B-EH(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series EH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Latch Lock
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.165" (4.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S5B-EH(L
Other Names (W)S5B-EH(LF)(SN),S5BEHLFSN,455-1628
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293307-S5B-EH(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S5B-EH(LF)(SN) CAD Model

Description

The JST Sales America Inc. S5B-EH(LF)(SN) is a rectangular connector with a header type and a male pin contact type.

  • Manufacturer: JST Sales America Inc.
  • Type: Rectangular connector, header type
  • Contact Type: Male pin
  • Fastening Type: Latch lock
  • Style: Board-to-cable/wire
  • Pitch: 0.098" (2.50mm)
  • Row Spacing - Mating: N/A
  • Contact Length - Mating: 0.157" (4.00mm)
  • Contact Length - Post: 0.126" (3.20mm)
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Mounting: Through-hole and right-angle
  • Shrouding: Shrouded-3 wall
  • Insulation Color: Natural
  • Insulation Material: Polyamide (PA66), nylon 6/6
  • Win Source Part Number: 1293307-S5B-EH(LF)(SN)
