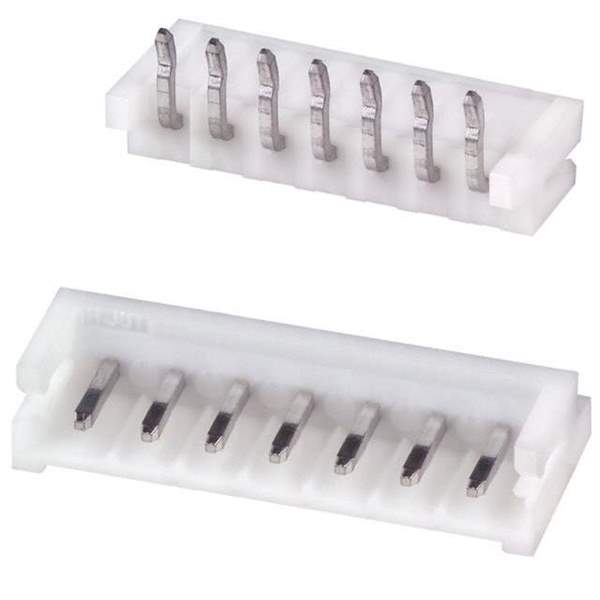

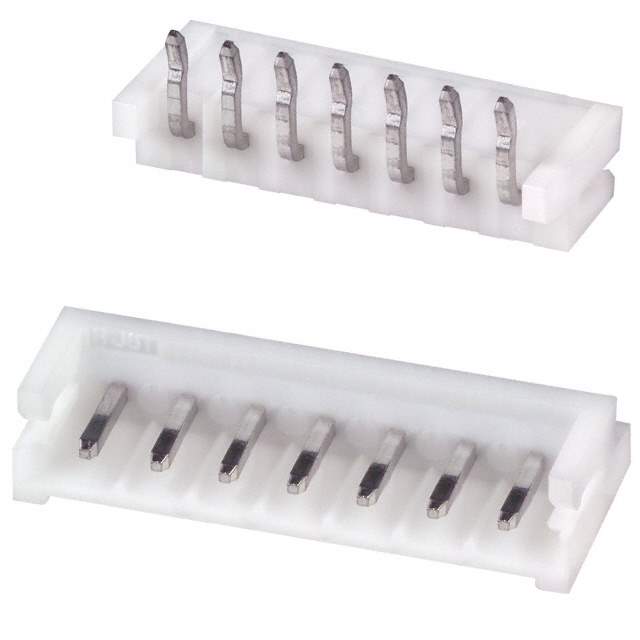

S7B-EH(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S7B-EH(LF)(SN)

Part No S7B-EH(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series EH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Latch Lock
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.165" (4.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S7B-EH
Other Names (W)S7B-EH(LF)(SN),455-1630,S7BEHLFSN
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293305-S7B-EH(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S7B-EH(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1293305-S7B-EH(LF)(SN) is a 7-position male pin header connector.

  • Manufacturer: JST Sales America Inc.
  • Series: EH
  • Positions: 7
  • Pitch: 0.098 inches (2.5mm)
  • Package: Bulk
  • Temperature Range: -25°C to 85°C
  • Supply and Demand Status: Balanced
  • HTSUS: 8536.69.4040
