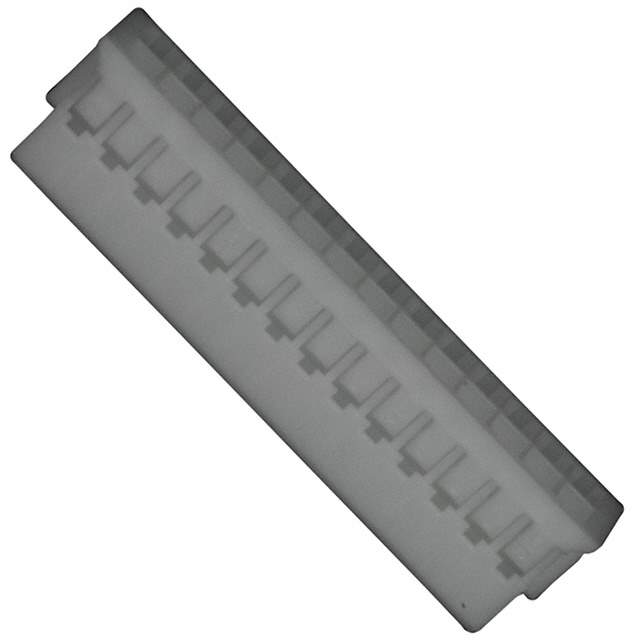

PHDR-28VS Real Image
Same model may have multiple batches, images only for reference.

PHDR-28VS

Part No PHDR-28VS
Manufacturer JST Sales America Inc.
Catalog Rectangular - Board to Board Connectors
Description CONN HOUSING PHD 28POS 2MM DUAL / 28 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JST Sales America Inc.
Series PHD
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 28
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Note Contacts Not Included
Base Product Number PHDR-28V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names 455-1171,PHDR28VS
Standard Package 1,000
Win Source Part Number 1174023-PHDR-28VS
Ultra Librarian 3D Model Ultra Librarian PHDR-28VS CAD Model

Description

The PHD series female socket connector is designed for use in rectangular connector housings.

  • Pitch: 0.079 inches
  • Positions: 28
  • Color: Natural
  • Special Features: No special features
  • Connector Type: Receptacle
  • Rows: Two
  • Row Spacing: 0.079 inches
  • Contact Termination: Crimp
  • Mounting Type: Free hanging (in-line)
  • Packaging: Bulk packaging with 1,000 units per package
  • Manufacturer: JST Sales America Inc.
  • Part Number: 1174023-PHDR-28VS
  • Contacts: Not included in the package
