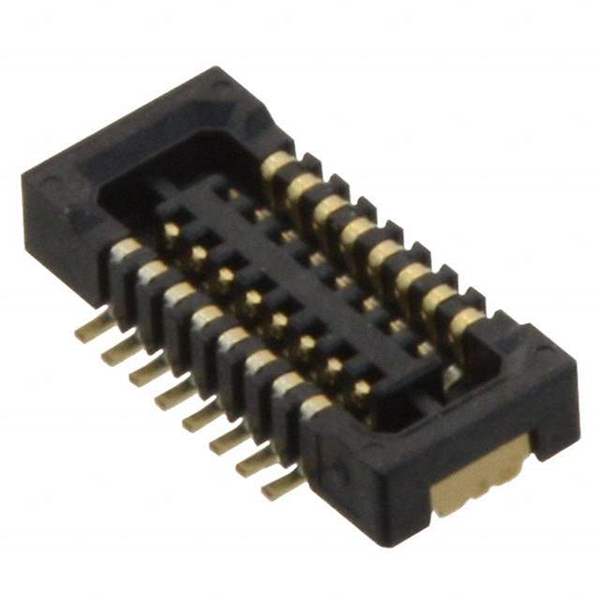

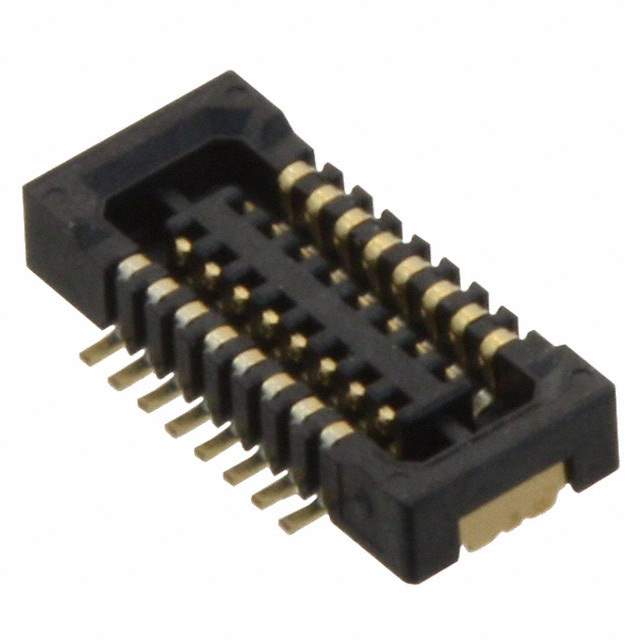

DF37NC-16DS-0.4V(51)

Part No DF37NC-16DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 16POS 0.4MM SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 16
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 0.98mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 014143-DF37NC-16DS-0.4V(51)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian DF37NC-16DS-0.4V(51) CAD Model

Description

DF37NC-16DS-0.4V(51) from Hirose Electric Co Ltd is a compact rectangular board-to-board receptacle designed for dense electronic assemblies that need fine-pitch interconnection and low-profile stacking. With 16 positions, 0.40 mm pitch, dual-row construction, and SMT mounting, it is well suited for portable devices, compact industrial modules, embedded control boards, and other space-constrained PCB designs where signal integrity and mechanical fit are critical. The gold contact finish supports reliable mating performance in repeated assembly environments, while reel packaging fits automated production workflows. Based on the provided status, this part is currently Active, which is favorable for ongoing procurement planning, although the overall lifecycle field is listed as unknown and should still be confirmed through Hirose documentation for long-term programs. RoHS compliance information is not explicitly provided in the supplied specifications, so compliance status should be treated as information not available pending confirmation from the manufacturer datasheet or formal compliance certificate.
