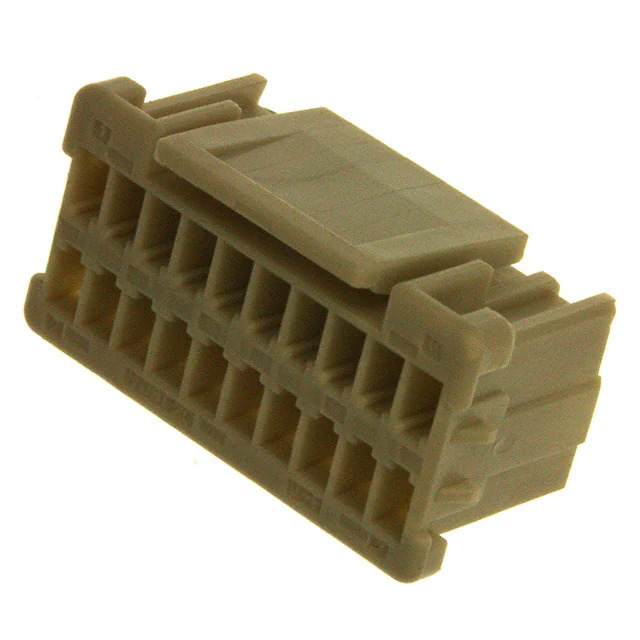

PNDP-20V-Z JST Sales America Inc.
Same model may have multiple batches, images only for reference.

PNDP-20V-Z

Part No PNDP-20V-Z
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 20POS 2.00MM / 20 Rectangular Connectors - Housings Receptacle Ivory 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JST Sales America Inc.
Series PND
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.197" (5.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Ivory
Features -
Temperature Range - Operating -25°C ~ 85°C
Note Contacts Not Included
Base Product Number PNDP-20V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365577-PNDP-20V-Z
Ultra Librarian 3D Model Ultra Librarian PNDP-20V-Z CAD Model

Description

The PNDP-20V-Z is a rectangular connector housing from JST Sales America Inc.'s PND series. It is a receptacle connector with a mounting type of free hanging (in-line).

  • Connector Type: Receptacle
  • Series: PND
  • Mounting Type: Free Hanging (In-Line)
  • Operating Temperature: -25°C ~ 85°C
  • Color: Ivory
  • Fastening Type: Latch Lock
  • Number of Positions: 20
  • Number of Rows: 2
  • Contacts: Not Included
  • Status: Active
  • Pitch: 0.079" (2.00mm)
  • Row Spacing: 0.197" (5.00mm)
