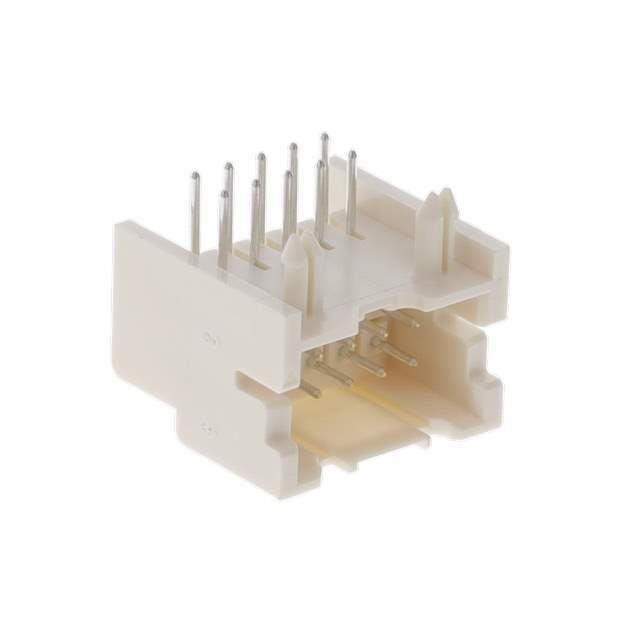

S10B-XADSS-N(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S10B-XADSS-N(LF)(SN)

Part No S10B-XADSS-N(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog OEM Parts ( S )
Description Conn Shrouded Header HDR 10 POS 2.5mm Solder RA Thru-Hole Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Male Pin
Contact Plating Lead, Tin
Fastening Type Ramp
Lead Free Yes
Mount Through Hole
Number of Positions 10
Number of Rows 2
Packaging Bulk
Pitch 2.4892 mm
RoHS Compliant
Row Spacing 2.4892 mm
Termination Solder
Win Source Part Number 1019801-S10B-XADSS-N(LF)(SN)
Categories OEM Parts( S )
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian S10B-XADSS-N(LF)(SN) CAD Model

Description

The 1019801-S10B-XADSS-N(LF)(SN) is a male pin connector with 10 positions and falls under the category of S OEM parts.

  • Positions: 10
  • Pitch: 2.4892 mm
  • Color: Natural
  • Number of Rows: 2
  • Row Spacing: 2.4892 mm
  • Termination: Solder
  • Fastening Type: Ramp
  • Contact Plating: Lead and Tin
  • Supply and Demand Status: Short
  • Lead-Free: Yes
  • RoHS Compliant: Yes
