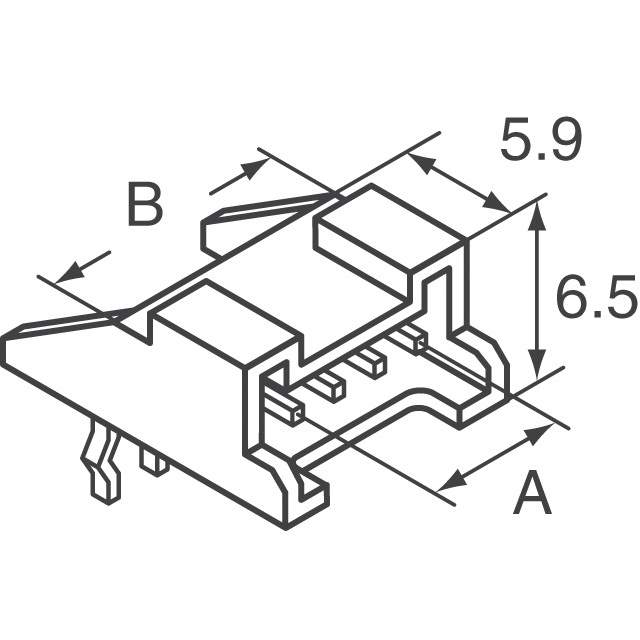

The JST Sales America Inc. PA series 1198290-PA-11 11-position male pin header connector is a through-hole mounting type connector that is designed for board to cable/wire style connections.

• Manufacturer: JST Sales America Inc.
• Series: PA
• Connector Type: Pin Header
• Gender: Male
• Number of Positions: 11
• Mounting Type: Through Hole
• Connection Style: Board to Cable/Wire
• Pitch-Mating: 0.079 inches (2.00mm)
• Insulation Material: Polybutylene Terephthalate (PBT) and Glass-Filled
• Contact Finish-Mating: Tin
• Contact Finish-Post: Tin
• Current Rating: 3A
• Voltage Rating: 250V
• Fastening Type: Locking Ramp
• Shroud: Shrouded with 4 Walls
• Insulation Height: 0.256 inches (6.50mm)
• Contact Shape: Square
• Operating Temperature: -25°C to 85°C
• Packaging: Bulk
• Standard Package: 250
